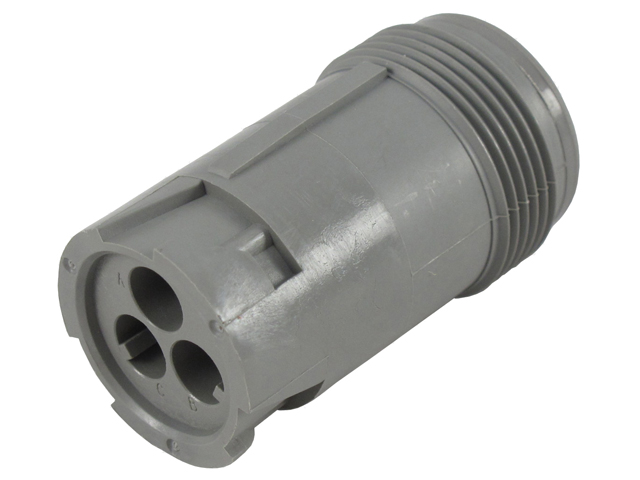

HD16-3-96S
DeutschCatalogue item

HD16-3-96S

Generally high availability — ask for current lead time
No. of cavities
3
Color
Gray
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities3
ColorGray
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.100-.150 [2.54-3.81]
keyedNo
MaterialPlastic
ModificationThreaded Rear
SeriesHD10 Series
ShapeCircular
Wire Size14, 16, 18, 20

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

HD10-3-96P
HD10-3-96P
HD14-3-96P
HD14-3-96P

Accessories

0411-310-1605
0411-310-1605
HD10-3BT
HD10-3BT
HDC14-3
HDC14-3
HDC14-3-JDL
HDC14-3-JDL

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD16-3-96S_99_c-hd16-3-96s-99-3d.pdfProduct Drawing (PDF)ENG_CD_HD16-3-96S_D1_pdf_hd16-3-96s-env_drw.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD16-3-96S_99_c-hd16-3-96s-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD16-3-96S_99_c-hd16-3-96s-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD16-3-96S_99_c-hd16-3-96s-99.3d_stp.zip
