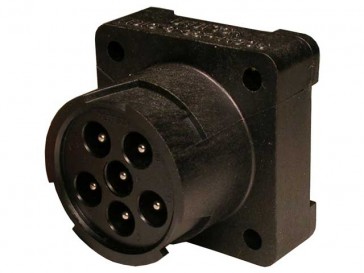

HD10-6-96P-N005
DeutschCatalogue item

HD10-6-96P-N005

Generally high availability — ask for current lead time
No. of cavities
6
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
PCB
Request a quoteCall usEmail

Additional information

No. of cavities6
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountPCB
Holds Pin/SocketPin
keyedNo
MaterialPlastic
ModificationMolded-in Pins
SeriesHD10 Series
ShapeCircular
Wire Size16

Mating connectors

HD16-6-96S
HD16-6-96S

Accessories

HDC16-6
HDC16-6
HDC16-6-JDL
HDC16-6-JDL
HDC16-6-LA
HDC16-6-LA

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD10-6-96P-N005_99_c-hd10-6-96p-n005-99-3d.pdfProduct Drawing (PDF)ENG_CD_HD10-6-96P-N005_A.pdfProduct Drawing (TIF)ENG_CD_HD10-6-96P-N005_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD10-6-96P-N005_99_c-hd10-6-96p-n005-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD10-6-96P-N005_99_c-hd10-6-96p-n005-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD10-6-96P-N005_99_c-hd10-6-96p-n005-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
