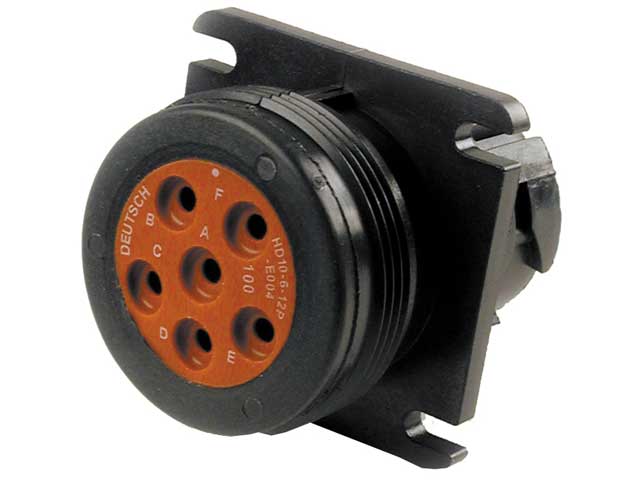

HD10-6-12P-E004
DeutschCatalogue item

HD10-6-12P-E004

Generally high availability — ask for current lead time
No. of cavities
6
Color
Black
Connector Style
Receptacle
Contact Size
12
Current Rating
25
Flange/In-line/PCB Mount
Flange
Request a quoteCall usEmail

Additional information

No. of cavities6
ColorBlack
Connector StyleReceptacle
Contact Size12
Current Rating25
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.134-.170 [3.40-4.31]
keyedNo
MaterialPlastic
ModificationThreaded Rear
SeriesHD10 Series
ShapeCircular
Wire Size10, 12, 14

Contacts

0460-204-12141
0460-204-12141
0460-220-1231
0460-220-1231
1060-12-0144
1060-12-0144
1060-12-0166
1060-12-0166

Mating connectors

HD16-6-12S
HD16-6-12S
HD16-6-12S-B010
HD16-6-12S-B010

Accessories

HD10-6-GKT
HD10-6-GKT
HD10-6BT
HD10-6BT
HDC16-6
HDC16-6
HDC16-6-JDL
HDC16-6-JDL

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD10-6-12P-E004_99_c-hd10-6-12p-e004-99-3d.pdfProduct Drawing (PDF)ENG_CD_HD10-6-12P-E004_-.pdfProduct Drawing (TIF)ENG_CD_HD10-6-12P-E004_-.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD10-6-12P-E004_99_c-hd10-6-12p-e004-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD10-6-12P-E004_99_c-hd10-6-12p-e004-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD10-6-12P-E004_99_c-hd10-6-12p-e004-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
