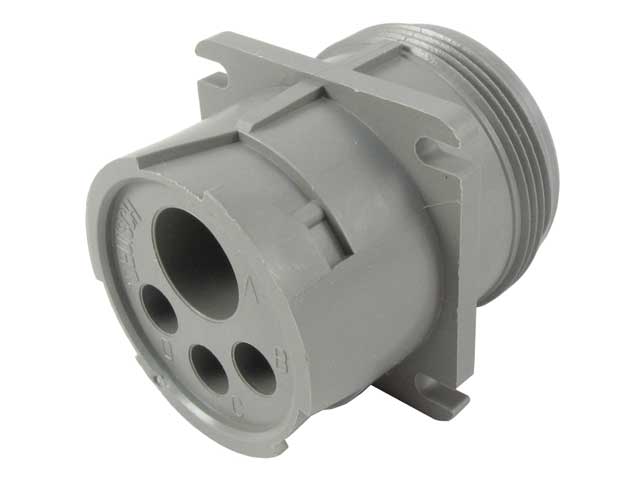

HD10-4-4P
DeutschCatalogue item

HD10-4-4P

Generally high availability — ask for current lead time
No. of cavities
4
Color
Gray
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange
Holds Pin/Socket
Pin
Insulation
(#4).280-.292 [7.11-7.42], (#16).100-.150 [2.54-3.81]
Request a quoteCall usEmail

Additional information

No. of cavities4
ColorGray
Connector StyleReceptacle
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation(#4).280-.292 [7.11-7.42], (#16).100-.150 [2.54-3.81]
keyedNo
MaterialPlastic
ModificationThreaded Rear
SeriesHD10 Series
ShapeCircular
Wire Size6, 14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-0490
0460-204-0490
1060-16-0122
1060-16-0122

Mating connectors

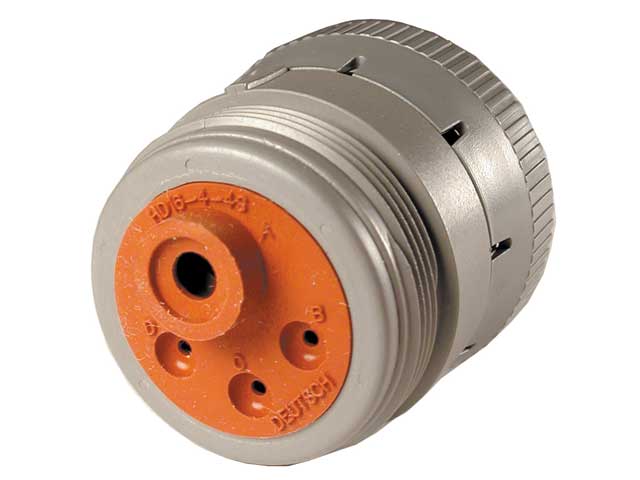

HD16-4-4S
HD16-4-4S

Accessories

HD10-9-GKT
HD10-9-GKT
HD10-9BT
HD10-9BT
HDC16-9
HDC16-9
HDC16-9-JDL
HDC16-9-JDL

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD10-4-4P_99_c-hd10-4-4p-99-3d.pdfProduct Drawing (PDF)ENG_CD_HD10-4-4P_E.pdfProduct Drawing (TIF)ENG_CD_HD10-4-4P_E.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD10-4-4P_99_c-hd10-4-4p-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD10-4-4P_99_c-hd10-4-4p-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD10-4-4P_99_c-hd10-4-4p-99.3d_stp.zip
