DeutschCatalogue item

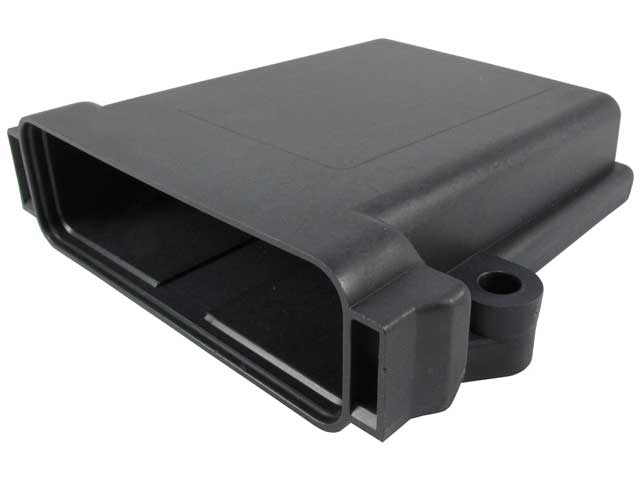

EEC-325X4B
Generally high availability — ask for current lead time
Color
Black
keyed
No
Material
Plastic
Series
EEC
Special Features
Without vent hole. Uses DTM Series headers. Accepts 3.25" x 4" PCB.
Additional information
| Color | Black |
| keyed | No |
| Material | Plastic |
| Series | EEC |
| Special Features | Without vent hole. Uses DTM Series headers. Accepts 3.25" x 4" PCB. |
Mating connectors
Drawings
Customer View Model (PDF)3D_CVM_CVM_EEC-325X4B_99.pdfProduct Drawing (PDF)ENG_CD_EEC-325X4A-EEC-325X4B_F.pdfProduct Drawing (TIF)ENG_CD_EEC-325X4A-EEC-325X4B_F.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_EEC-325X4B_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_EEC-325X4B_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_EEC-325X4B_99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
