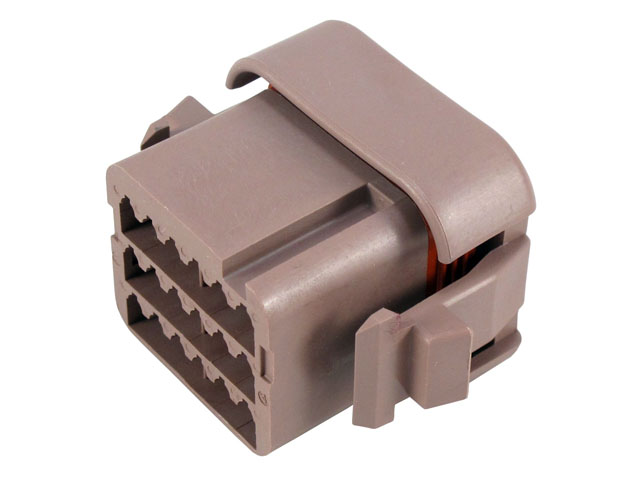

DTV06-18SD
DeutschCatalogue item

DTV06-18SD

Generally high availability — ask for current lead time
No. of cavities
18
Color
Brown
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
Flange
Request a quoteCall usEmail

Additional information

No. of cavities18
ColorBrown
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketSocket
Insulation.088-.145 [2.23-3.68]
keyedYes, D key
MaterialPlastic
SeriesDTV Series
ShapeRectangular
Special FeaturesEnd cap
Wire Size14, 16, 18, 20

Mating connectors

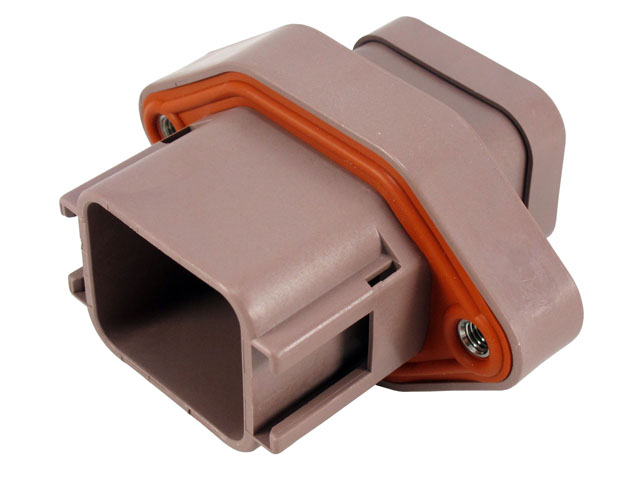

DTV02-18PD
DTV02-18PD

Required components

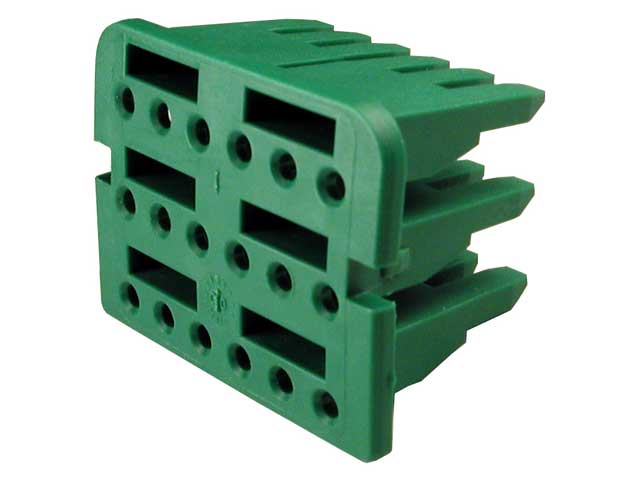

WV-18S
WV-18S

Drawings

Product Drawing (PDF)ENG_CD_DTV06-18SX_-.pdf

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
