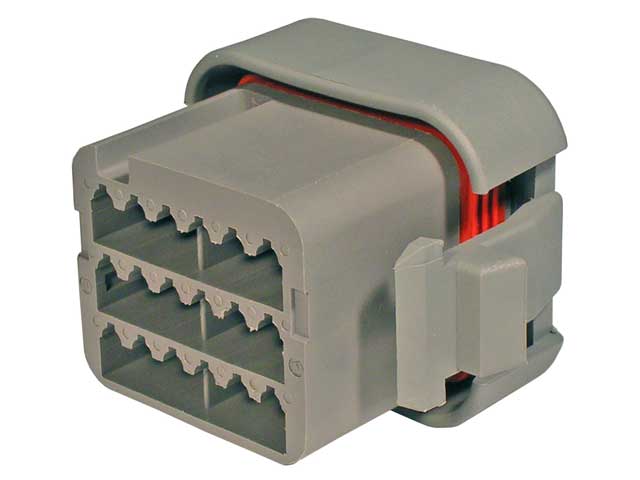

DTV06-18SA
DeutschCatalogue item

DTV06-18SA

Generally high availability — ask for current lead time
No. of cavities
18
Color
Gray
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
Flange
Request a quoteCall usEmail

Additional information

No. of cavities18
ColorGray
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketSocket
Insulation.088-.145 [2.23-3.68]
keyedYes, A key
MaterialPlastic
SeriesDTV Series
ShapeRectangular
Special FeaturesEnd cap
Wire Size14, 16, 18, 20

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

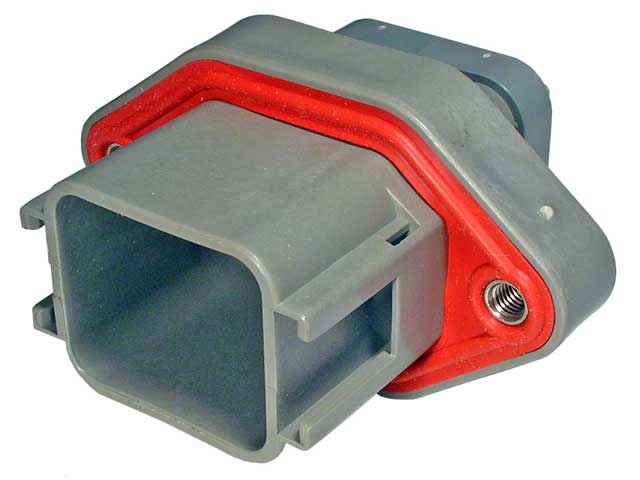

DTV02-18PA
DTV02-18PA

Required components

WV-18S
WV-18S

Accessories

DT-RT1
DT-RT1

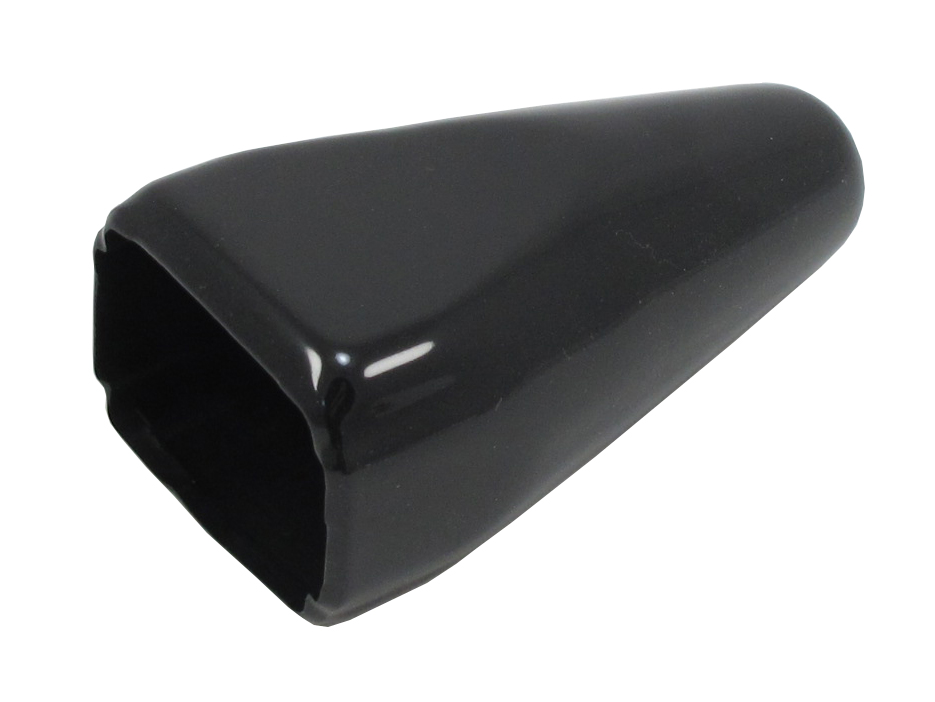

DTV18S-BT-BK
DTV18S-BT-BK

Drawings

Customer View Model (PDF)3D_CVM_CVM_DTV06-18SA_99.pdfProduct Drawing (PDF)ENG_CD_DTV06-18SX_-.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTV06-18SA_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTV06-18SA_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTV06-18SA_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
