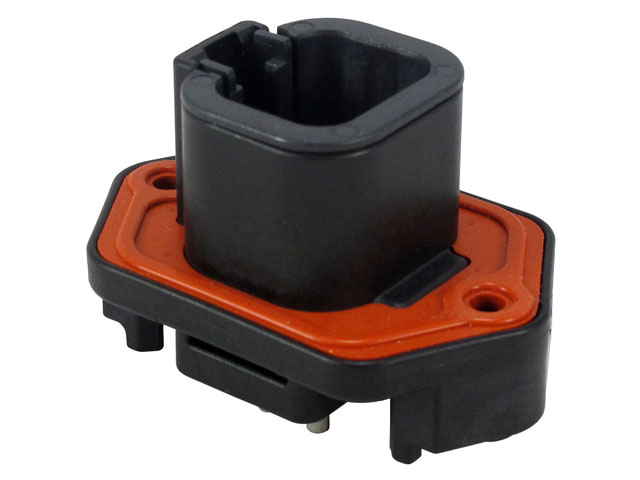

DTP15-4P
DeutschCatalogue item

DTP15-4P

Generally high availability — ask for current lead time
No. of cavities
4
Color
Black
Connector Style
Receptacle
Contact Size
12
Current Rating
25
Flange/In-line/PCB Mount
PCB
Request a quoteCall usEmail

Additional information

No. of cavities4
ColorBlack
Connector StyleReceptacle
Contact Size12
Current Rating25
Flange/In-line/PCB MountPCB
keyedNo
MaterialPlastic
SeriesDTP Series
ShapeRectangular
Special FeaturesStraight molded pins
Wire Size12

Mating connectors

DTP06-4S-EE01
DTP06-4S-EE01

Drawings

Customer View Model (PDF)3D_CVM_CVM_DTP15-4P_99.pdfProduct Drawing (PDF)ENG_CD_DTP15-4P_-.pdfProduct Drawing (TIF)ENG_CD_DTP15-4P_-.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTP15-4P_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTP15-4P_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTP15-4P_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
