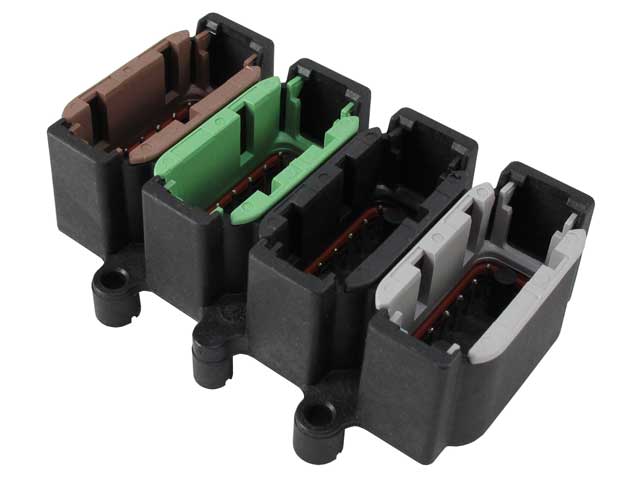

DTMF15-48P
DeutschCatalogue item

DTMF15-48P

Generally high availability — ask for current lead time
Color
Black
Connector Style
Receptacle
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
PCB
Holds Pin/Socket
Pin
Request a quoteCall usEmail

Additional information

ColorBlack
Connector StyleReceptacle
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountPCB
Holds Pin/SocketPin
keyedYes, A, B, C, D key
MaterialPlastic
SeriesDTM Series
ShapeRectangular
Special FeaturesSz. 20 straight molded pins, A, B, C, D key, flangeless
Wire Size16

Mating connectors

DTM06-12SA
DTM06-12SA
DTM06-12SB
DTM06-12SB
DTM06-12SC
DTM06-12SC
DTM06-12SD
DTM06-12SD

Drawings

Customer View Model (PDF)3D_CVM_CVM_DTMF15-48P_99.pdfProduct Drawing (PDF)ENG_CD_DTMF15-48P_A.pdfProduct Drawing (TIF)ENG_CD_DTMF15-48P_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTMF15-48P_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTMF15-48P_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTMF15-48P_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
