DeutschCatalogue item

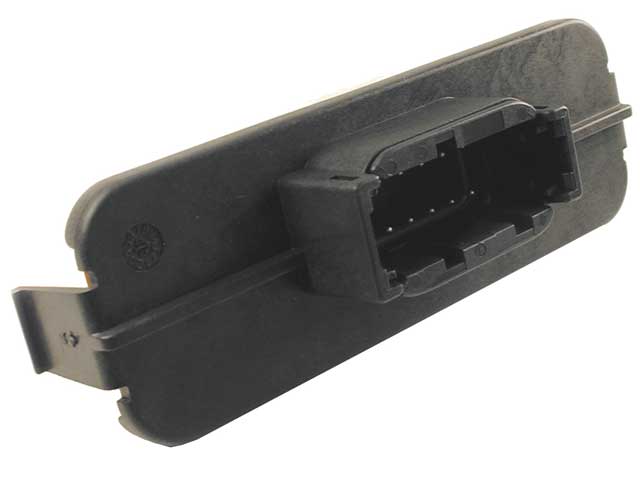

DTM13-12PB-R008
Generally high availability — ask for current lead time
No. of cavities
12
Color
Black
Connector Style
Receptacle
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
PCB
Additional information
| No. of cavities | 12 |
| Color | Black |
| Connector Style | Receptacle |
| Contact Size | 20 |
| Current Rating | 7.5 |
| Flange/In-line/PCB Mount | PCB |
| Holds Pin/Socket | Pin |
| keyed | Yes, B key |
| Material | Plastic |
| Modification | PCB Enclosure Header |
| Series | DTM Series |
| Shape | Rectangular |
| Special Features | 90 degrees molded pins |
| Wire Size | 20 |
Mating connectors
Drawings
Customer View Model (PDF)3D_CVM_CVM_DTM13-12PB-R008_99_c-dtm13-12pb-r008-99-3d.pdfProduct Drawing (PDF)ENG_CD_DTM13-12PX-R008_C.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTM13-12PB-R008_99_c-dtm13-12pb-r008-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTM13-12PB-R008_99_c-dtm13-12pb-r008-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTM13-12PB-R008_99_c-dtm13-12pb-r008-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
