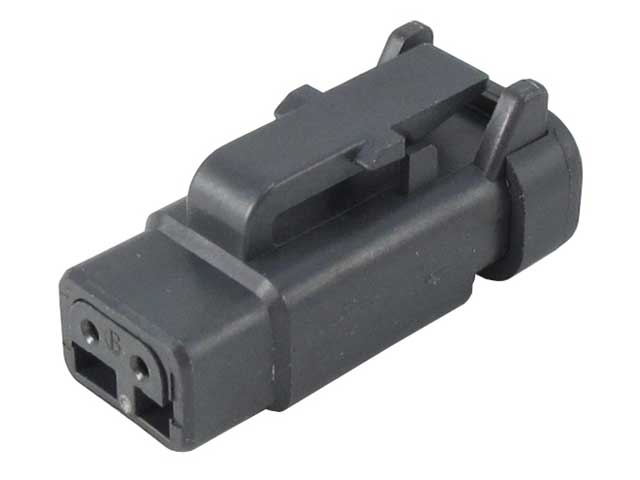

DTM06-2S-EP10
DeutschCatalogue item

DTM06-2S-EP10

Generally high availability — ask for current lead time
No. of cavities
2
Color
Black
Connector Style
Plug
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities2
ColorBlack
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
keyedYes, B key
MaterialPlastic
ModificationTerminating Resistor, Gold Sockets, J1939
SeriesDTM Series
ShapeRectangular
Wire Size16, 18, 20, 22

Mating connectors

DTM04-2P-E004
DTM04-2P-E004
DTM04-2P-E005
DTM04-2P-E005

Required components

Included

Drawings

Customer View Model (PDF)3D_CVM_CVM_DTM06-2S-EP10_99.pdfProduct Drawing (PDF)ENG_CD_DTM06-2S-EP10_A.pdfProduct Drawing (TIF)ENG_CD_DTM06-2S-EP10_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTM06-2S-EP10_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTM06-2S-EP10_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTM06-2S-EP10_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
