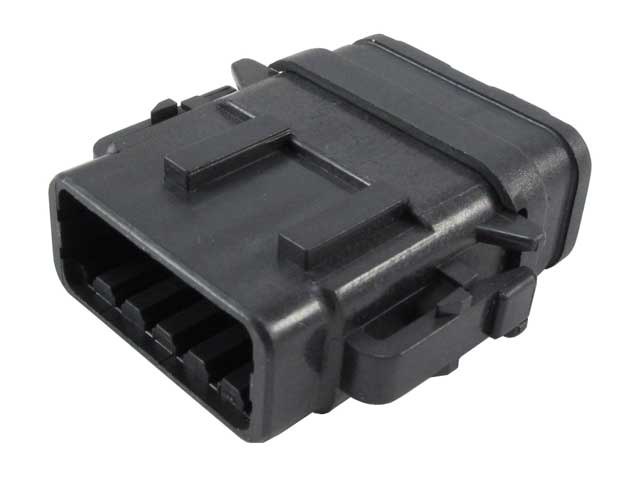

DTM06-08SB-E007
DeutschCatalogue item

DTM06-08SB-E007

Generally high availability — ask for current lead time
No. of cavities
8
Color
Black
Connector Style
Plug
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities8
ColorBlack
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
keyedYes, B key
MaterialPlastic
ModificationShrink Boot Adapter
SeriesDTM Series
ShapeRectangular
Wire Size16, 18, 20, 22

Contacts

0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031
1062-20-0144
1062-20-0144
1062-20-0222
1062-20-0222

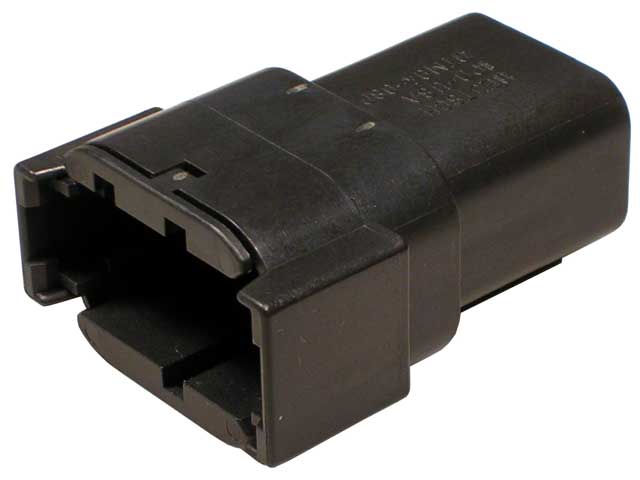

Mating connectors

DTM04-08PB
DTM04-08PB

Required components

WM-8S
WM-8S

Accessories

DT-RT1
DT-RT1

Drawings

Customer View Model (PDF)3D_CVM_CVM_DTM06-08SB-E007_99_c-dtm06-08sb-e007-99-3d.pdfProduct Drawing (PDF)ENG_CD_DTM06-08SX-E007_A.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTM06-08SB-E007_99_c-dtm06-08sb-e007-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTM06-08SB-E007_99_c-dtm06-08sb-e007-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTM06-08SB-E007_99_c-dtm06-08sb-e007-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
