DTM04-6P-E005
DeutschCatalogue item

DTM04-6P-E005

Generally high availability — ask for current lead time
No. of cavities
6
Color
Black
Connector Style
Receptacle
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities6
ColorBlack
Connector StyleReceptacle
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.053-.120 [1.35-3.05]
keyedNo
MaterialPlastic
ModificationEnd Cap
SeriesDTM Series
ShapeRectangular
Wire Size16, 18, 20, 22

Contacts

0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031
1060-20-0122
1060-20-0122
1060-20-0144
1060-20-0144

Mating connectors

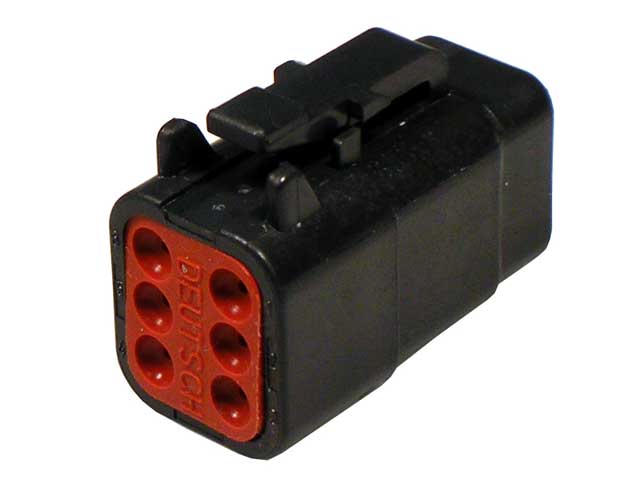

DTM06-6S-E004
DTM06-6S-E004

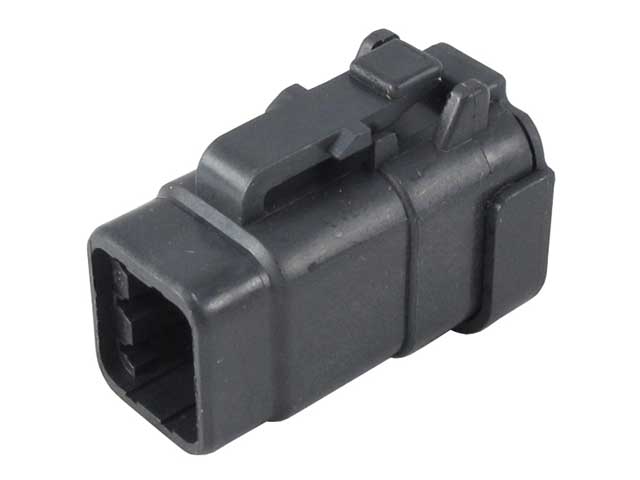

DTM06-6S-E005
DTM06-6S-E005

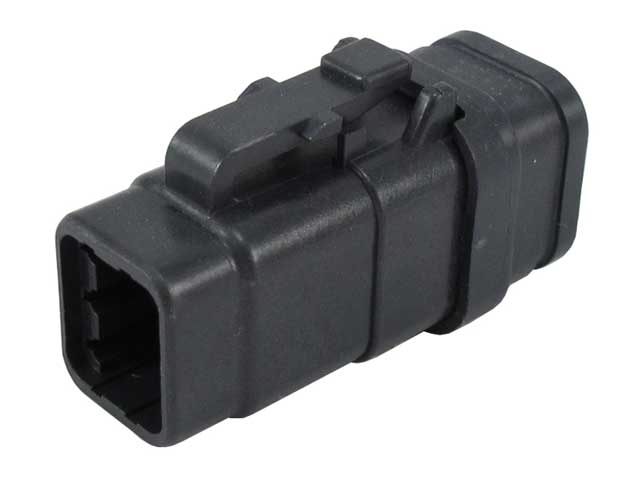

DTM06-6S-EE03
DTM06-6S-EE03

Required components

WM-6P
WM-6P

Accessories

1011-026-0205
1011-026-0205
1027-003-1200
1027-003-1200
DT-RT1
DT-RT1

Drawings

Product Drawing (PDF)ENG_CD_DTM04-6P-E005_-.pdfProduct Drawing (TIF)ENG_CD_DTM04-6P-E005_-.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTM04-6P-E005_99_c-dtm04-6p-e005-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTM04-6P-E005_99_c-dtm04-6p-e005-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTM04-6P-E005_99_c-dtm04-6p-e005-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
