DeutschCatalogue item

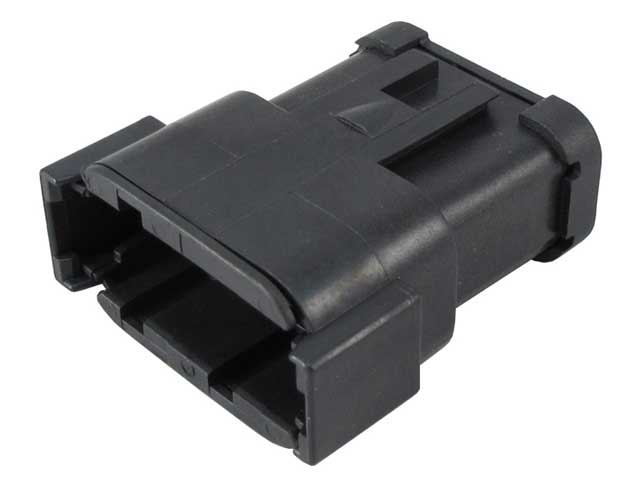

DTM04-12PA-E005
Generally high availability — ask for current lead time
No. of cavities
12
Color
Black
Connector Style
Receptacle
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
In-line
Additional information
| No. of cavities | 12 |
| Color | Black |
| Connector Style | Receptacle |
| Contact Size | 20 |
| Current Rating | 7.5 |
| Flange/In-line/PCB Mount | In-line |
| Holds Pin/Socket | Pin |
| Insulation | .053-.120 [1.35-3.05] |
| keyed | Yes, A key |
| Material | Plastic |
| Modification | End Cap |
| Series | DTM Series |
| Shape | Rectangular |
| Wire Size | 16, 18, 20, 22 |
Contacts
Mating connectors
Required components
Accessories
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
