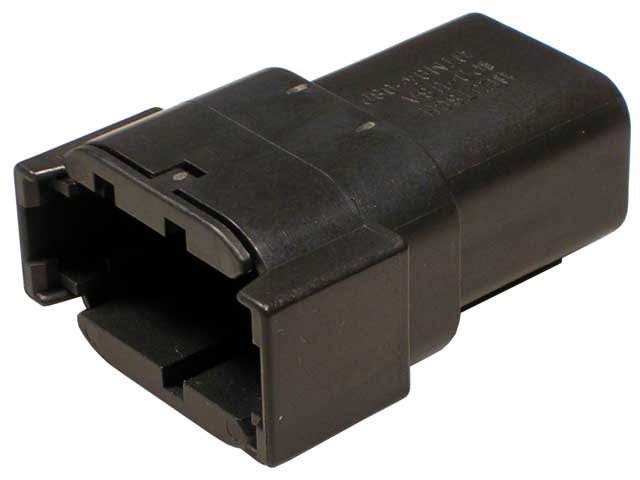

DTM04-08PB
Generally high availability — ask for current lead time
No. of cavities
8
Color
Black
Connector Style
Receptacle
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
In-line
Additional information
| No. of cavities | 8 |
| Color | Black |
| Connector Style | Receptacle |
| Contact Size | 20 |
| Current Rating | 7.5 |
| Flange/In-line/PCB Mount | In-line |
| Holds Pin/Socket | Pin |
| Insulation | .053-.120 [1.35-3.05] |
| keyed | Yes, B key |
| Material | Plastic |
| Series | DTM Series |
| Shape | Rectangular |
| Wire Size | 16, 18, 20, 22 |
Contacts

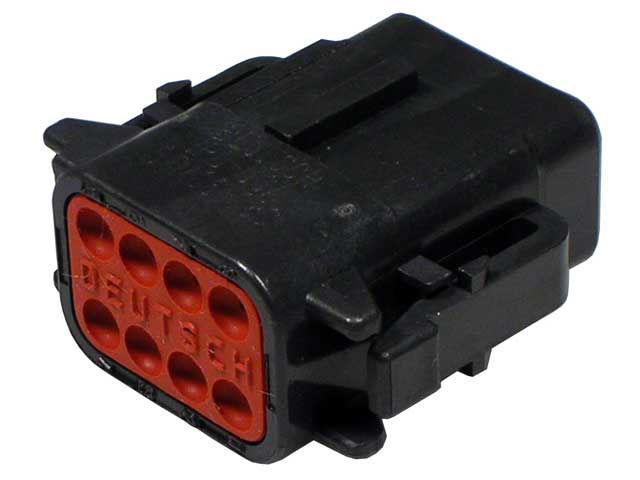

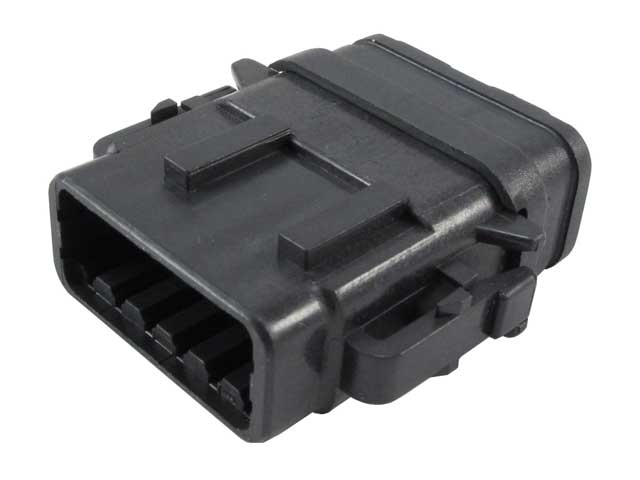

Mating connectors
Required components
Accessories
Drawings
Customer View Model (PDF)3D_CVM_CVM_DTM04-08PB_99_c-dtm04-08pb-99-3d.pdfProduct Drawing (PDF)ENG_CD_DTM04-08PX_-.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTM04-08PB_99_c-dtm04-08pb-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTM04-08PB_99_c-dtm04-08pb-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTM04-08PB_99_c-dtm04-08pb-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
