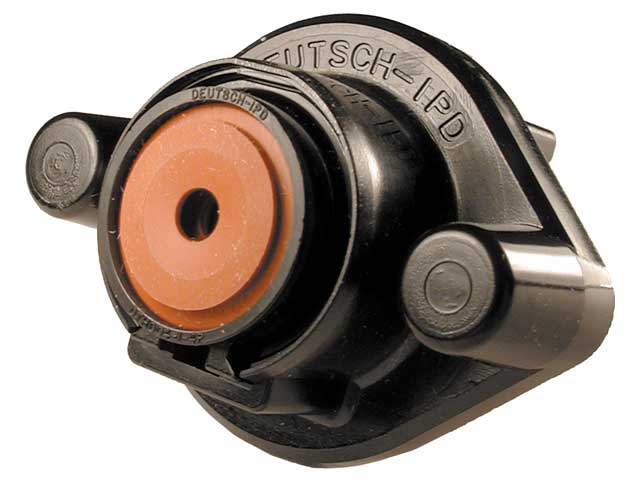

DTHD04-1-4P-L009
Generally high availability — ask for current lead time
No. of cavities
1
Color
Black
Connector Style
Receptacle
Contact Size
4
Current Rating
100
Flange/In-line/PCB Mount
Flange
Additional information
| No. of cavities | 1 |
| Color | Black |
| Connector Style | Receptacle |
| Contact Size | 4 |
| Current Rating | 100 |
| Flange/In-line/PCB Mount | Flange |
| Holds Pin/Socket | Pin |
| Insulation | .280-.292 [7.11-7.41] |
| keyed | No |
| Material | Plastic |
| Modification | Sealed Flange |
| Series | DTHD Series |
| Shape | Circular |
| Wire Size | 6 |
Contacts
Mating connectors
Drawings
Customer View Model (PDF)3D_CVM_CVM_DTHD04-1-4P-L009_99.pdfProduct Drawing (PDF)ENG_CD_DTHD04-1-4P-L009_B.pdfProduct Drawing (TIF)ENG_CD_DTHD04-1-4P-L009_B.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTHD04-1-4P-L009_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTHD04-1-4P-L009_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTHD04-1-4P-L009_99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
