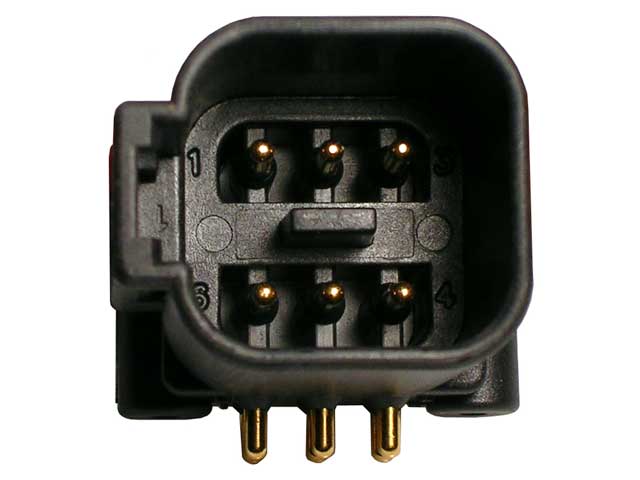

DTF13-6P-G003
DeutschCatalogue item

DTF13-6P-G003

Generally high availability — ask for current lead time
No. of cavities
6
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
PCB
Request a quoteCall usEmail

Additional information

No. of cavities6
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountPCB
keyedNo
MaterialPlastic
SeriesDT Series
ShapeRectangular
Special Features90 degrees molded gold pins, flangeless
Wire Size16

Mating connectors

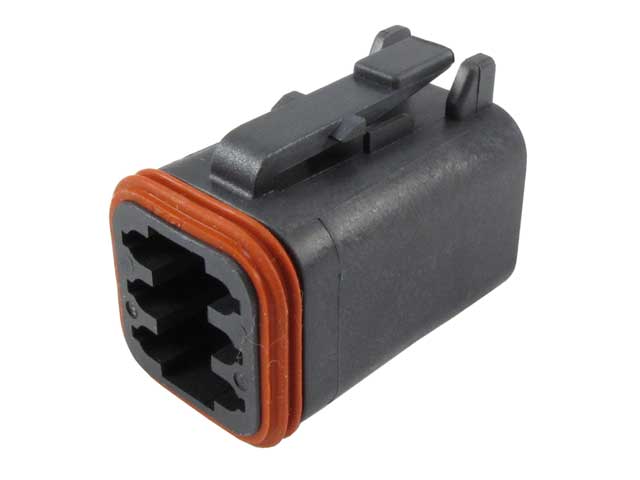

DT06-6S-E004
DT06-6S-E004

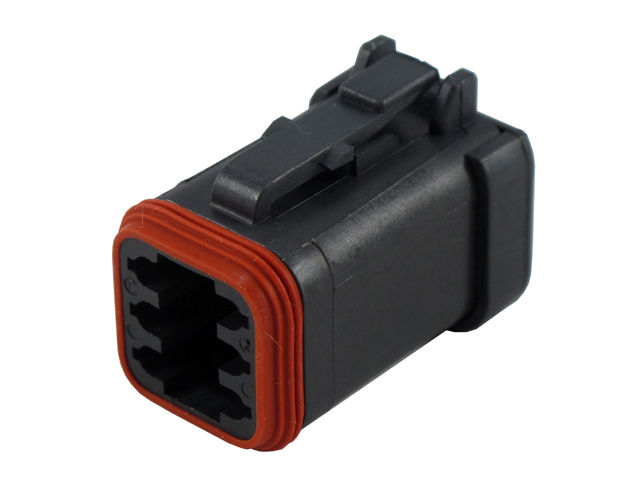

DT06-6S-EP06
DT06-6S-EP06

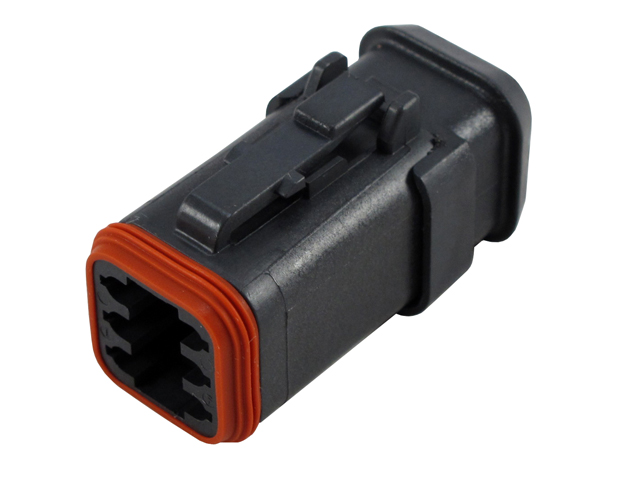

DT06-6S-EP11
DT06-6S-EP11
DT06-6S-P012
DT06-6S-P012

Drawings

Product Drawing (PDF)ENG_CD_DTF13-6PX-G003_A.pdf

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
