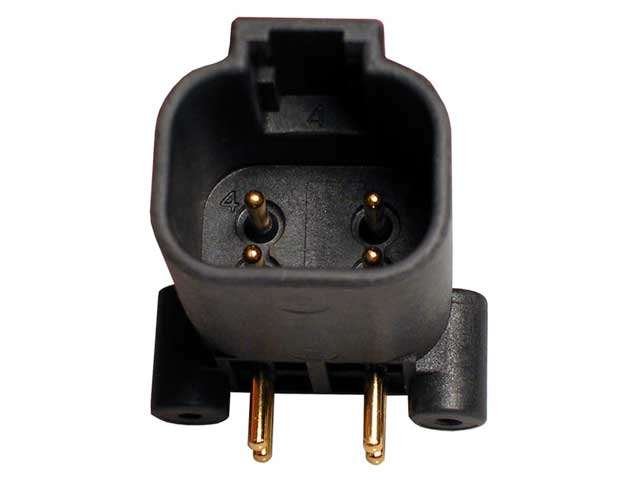

DTF13-4P-G003
DeutschCatalogue item

DTF13-4P-G003

Generally high availability — ask for current lead time
No. of cavities
4
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
PCB
Request a quoteCall usEmail

Additional information

No. of cavities4
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountPCB
keyedNo
MaterialPlastic
SeriesDT Series
ShapeRectangular
Special Features90 degrees molded gold pins, flangeless
Wire Size16

Mating connectors

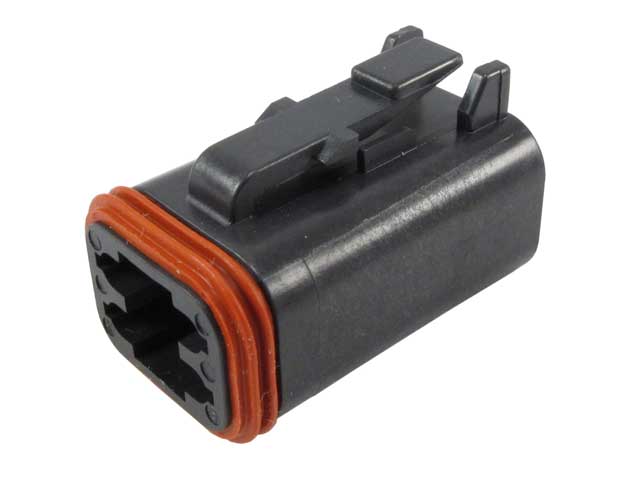

DT06-4S-E004
DT06-4S-E004
DT06-4S-EP06
DT06-4S-EP06

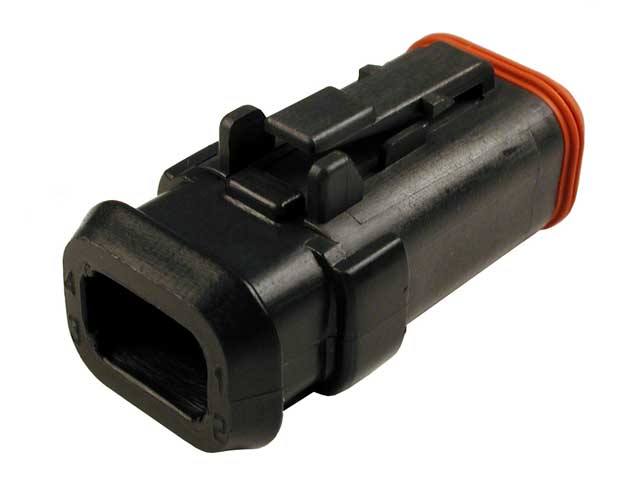

DT06-4S-EP11
DT06-4S-EP11

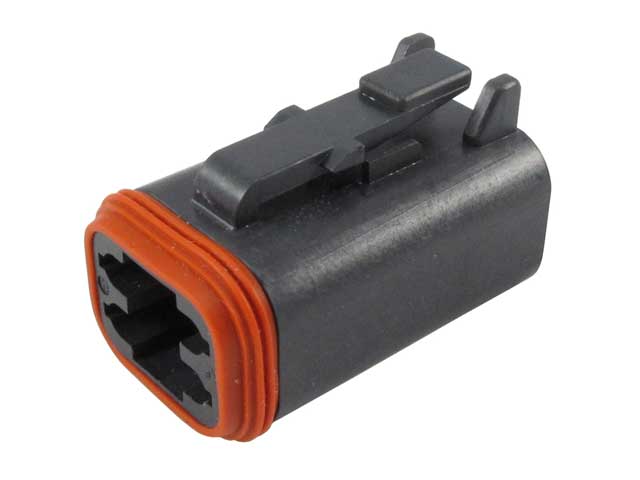

DT06-4S-P012
DT06-4S-P012

Drawings

Customer View Model (PDF)3D_CVM_CVM_DTF13-4P-G003_99_c-dtf13-4p-g003-99-3d.pdfProduct Drawing (PDF)ENG_CD_DTF13-4P-G003_-.pdfProduct Drawing (TIF)ENG_CD_DTF13-4P-G003_-.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DTF13-4P-G003_99_c-dtf13-4p-g003-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DTF13-4P-G003_99_c-dtf13-4p-g003-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DTF13-4P-G003_99_c-dtf13-4p-g003-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
