DeutschCatalogue item

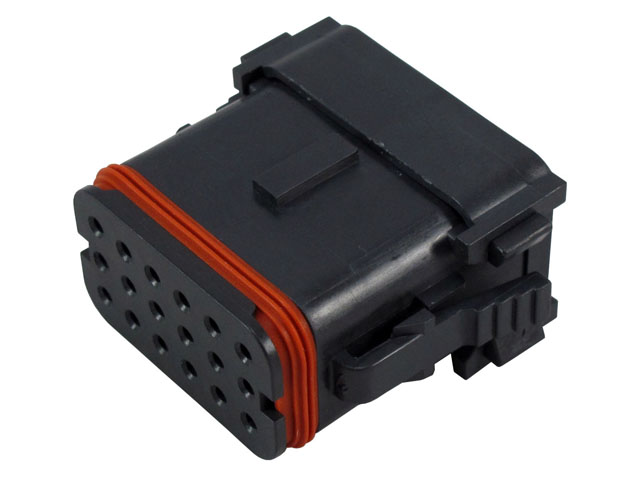

DT16-18SC-K004
Generally high availability — ask for current lead time
No. of cavities
18
Color
Black
Connector Style
Plug
Contact Size
16
Current Rating
13
Holds Pin/Socket
Socket
Additional information
| No. of cavities | 18 |
| Color | Black |
| Connector Style | Plug |
| Contact Size | 16 |
| Current Rating | 13 |
| Holds Pin/Socket | Socket |
| Insulation | .053-.120 [1.35-3.05] |
| keyed | Yes, C key |
| Material | Plastic |
| Modification | Enhanced Seal Retention, End Cap |
| Series | DT Series |
| Shape | Rectangular |
| Wire Size | 14, 16, 18, 20 |
Required components
N/A
Accessories
Drawings
Customer View Model (PDF)3D_CVM_CVM_DT16-18SC-K004_99_c-dt16-18sc-k004-99-3d.pdfProduct Drawing (PDF)ENG_CD_DT16-18SX-K004_E.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT16-18SC-K004_99_c-dt16-18sc-k004-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT16-18SC-K004_99_c-dt16-18sc-k004-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT16-18SC-K004_99_c-dt16-18sc-k004-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
Visit DEUTSCH website
