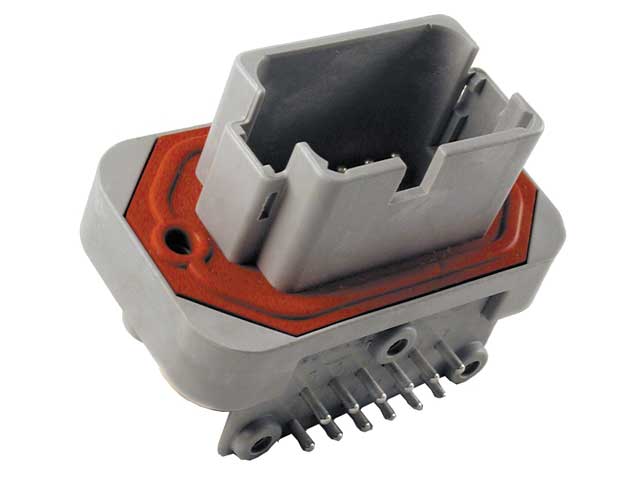

DT13-12PA-B016
DeutschCatalogue item

DT13-12PA-B016

Generally high availability — ask for current lead time
No. of cavities
12
Color
Gray
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
PCB
Request a quoteCall usEmail

Additional information

No. of cavities12
ColorGray
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountPCB
keyedYes, Enhanced A key
MaterialPlastic
SeriesDT Series
ShapeRectangular
Special Features90 degrees molded pins
Wire Size16

Mating connectors

DT06-12SA-CE05
DT06-12SA-CE05
DT06-12SA-CE06
DT06-12SA-CE06
DT06-12SA-EP06
DT06-12SA-EP06
DT06-12SA-P012
DT06-12SA-P012

Drawings

Customer View Model (PDF)3D_CVM_CVM_DT13-12PA-B016_99.pdfProduct Drawing (PDF)ENG_CD_DT13-12PX-B016_B.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT13-12PA-B016_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT13-12PA-B016_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT13-12PA-B016_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
