DT13-08PB-G003
DeutschCatalogue item

DT13-08PB-G003

Generally high availability — ask for current lead time
No. of cavities
8
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
PCB
Request a quoteCall usEmail

Additional information

No. of cavities8
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountPCB
keyedYes, B key
MaterialPlastic
SeriesDT Series
ShapeRectangular
Special Features90 degrees molded gold pins
Wire Size16

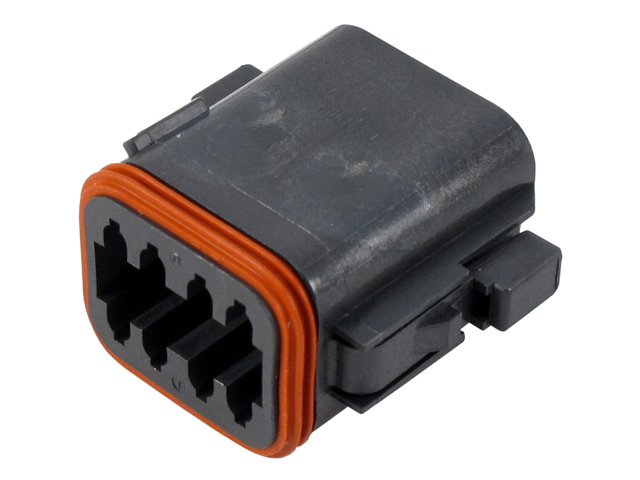

Mating connectors

DT06-08SB
DT06-08SB
DT06-08SB-C015
DT06-08SB-C015
DT06-08SB-CE01
DT06-08SB-CE01
DT06-08SB-P012
DT06-08SB-P012

Drawings

Customer View Model (PDF)3D_CVM_CVM_DT13-08PB-G003_99.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT13-08PB-G003_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT13-08PB-G003_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT13-08PB-G003_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
