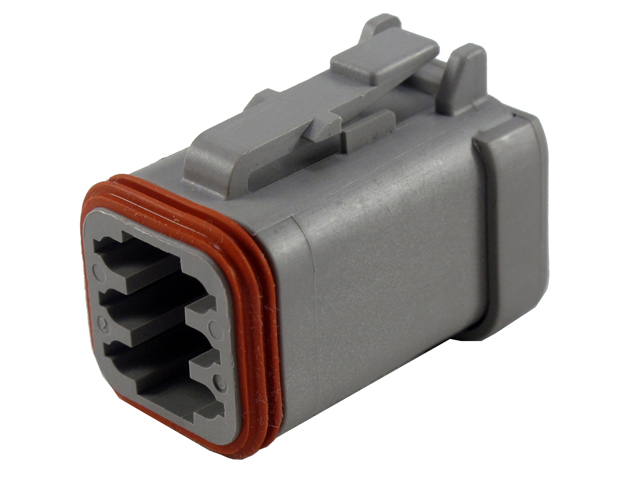

DT06-6S-CE01
DeutschCatalogue item

DT06-6S-CE01

Generally high availability — ask for current lead time
No. of cavities
6
Color
Gray
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities6
ColorGray
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
keyedNo
MaterialPlastic
ModificationEnd Cap, Reduced Dia. Seals
Seal SizeE seal
SeriesDT Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

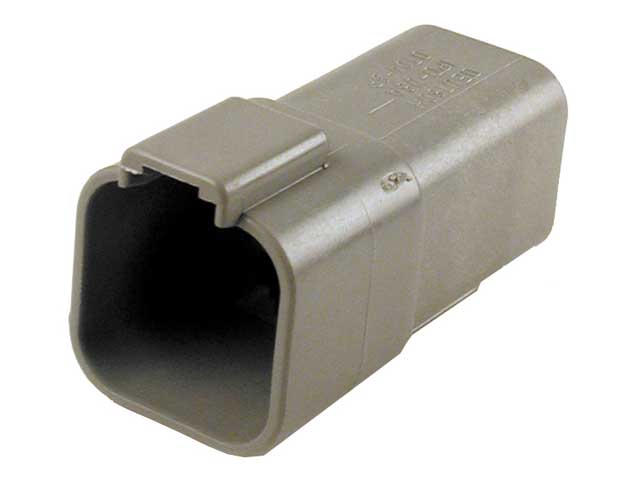

DT04-6P-C015
DT04-6P-C015

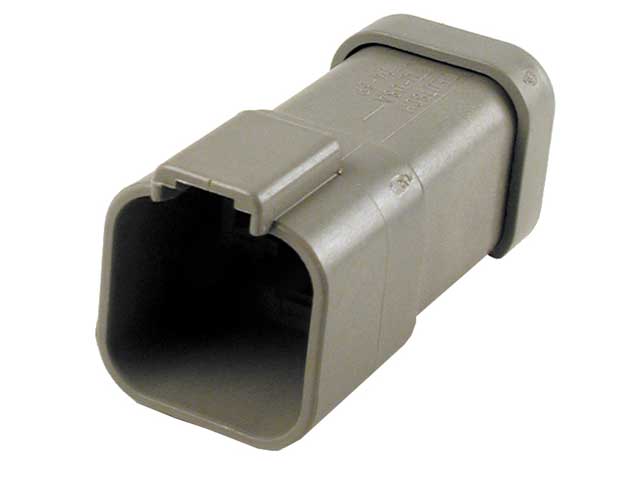

DT04-6P-CE01
DT04-6P-CE01

Required components

W6S
W6S

Accessories

1011-347-0605
1011-347-0605
DT-RT1
DT-RT1

Drawings

Customer View Model (PDF)3D_CVM_CVM_DT06-6S-CE01_99_c-dt06-6s-ce01-99-3d.pdfProduct Drawing (PDF)ENG_CD_DT06-6S-CE01_-.pdfProduct Drawing (TIF)ENG_CD_DT06-6S-CE01_-.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT06-6S-CE01_99_c-dt06-6s-ce01-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT06-6S-CE01_99_c-dt06-6s-ce01-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT06-6S-CE01_99_c-dt06-6s-ce01-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
