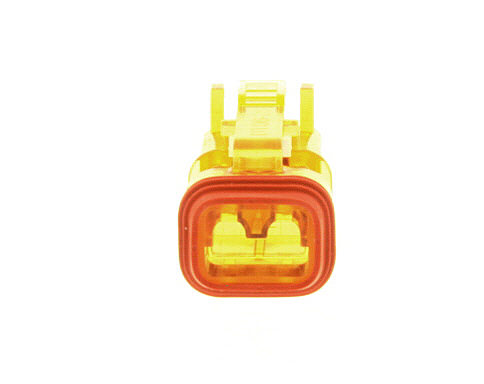

DT06-2S-SDT-CE28
DeutschCatalogue item

DT06-2S-SDT-CE28

Generally high availability — ask for current lead time
No. of cavities
2
Color
Transparent
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities2
ColorTransparent
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
keyedNo
MaterialTransparent PEI
ModificationEnhanced Seal Retention, Reduced Dia. Seals
Seal SizeE seal
SeriesDT Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

DT04-2P-C015
DT04-2P-C015
DT04-2P-CE02
DT04-2P-CE02
DT04-2P-CE04
DT04-2P-CE04
DT04-2P-CE09
DT04-2P-CE09

Required components

W2S-SDT-12V
W2S-SDT-12V
W2S-SDT-24V
W2S-SDT-24V
W2S-SDT-24

Accessories

1011-227-0205
1011-227-0205
1011-228-0205
1011-228-0205
1011-344-0205
1011-344-0205
DT2S-BT
DT2S-BT

Drawings

Customer View Model (PDF)DT06-2S-SDT-CE28 3D_CVM_CVM_2286003-3_B.pdfProduct Drawing (PDF)DT06-2S-SDT-CE28 ENG_CD_2286003_B2.pdfCAD Files 3D Model (STEP, Version 99, ZIP)DT06-2S-SDT-CE28 ENG_CVM_CVM_2286003-3_B.3d_stp.zipCAD Files 2D Drawing (DXF, Version 99, ZIP)DT06-2S-SDT-CE28 ENG_CVM_CVM_2286003-3_B.2d_dxf.zipCAD Files 3D Model (IGES, Version 99, ZIP)DT06-2S-SDT-CE28 ENG_CVM_CVM_2286003-3_B.3d_igs.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
