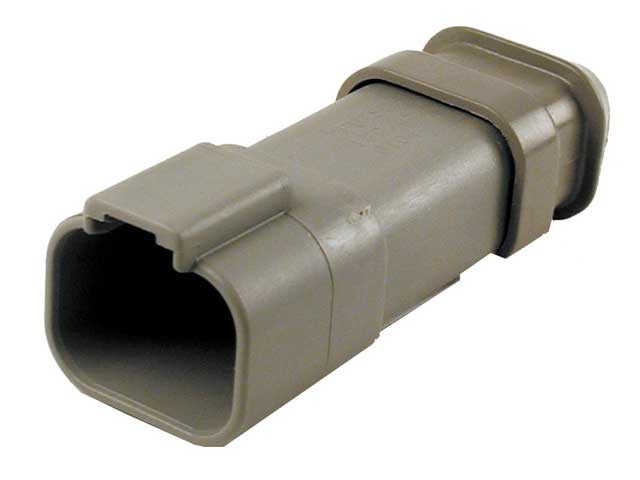

DT04-4P-E008
DeutschCatalogue item

DT04-4P-E008

Generally high availability — ask for current lead time
No. of cavities
4
Color
Gray
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities4
ColorGray
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.088-.145 [2.24-3.68]
keyedNo
MaterialPlastic
ModificationShrink Boot Adapter
SeriesDT Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-4S
DT06-4S
DT06-4S-E003
DT06-4S-E003
DT06-4S-E008
DT06-4S-E008

Required components

W4P
W4P

Accessories

1011-026-0205
1011-026-0205
1027-003-1200
1027-003-1200
DT-RT1
DT-RT1
DT4P-DC
DT4P-DC
SSK04 Rubber boot
SSK04 Rubber boot

Drawings

Customer View Model (PDF)3D_CVM_CVM_DT04-4P-E008_99.pdfProduct Drawing (PDF)ENG_CD_DT04-4P-E008_-.pdfProduct Drawing (TIF)ENG_CD_DT04-4P-E008_-.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT04-4P-E008_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT04-4P-E008_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT04-4P-E008_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
