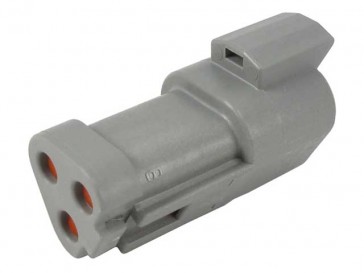

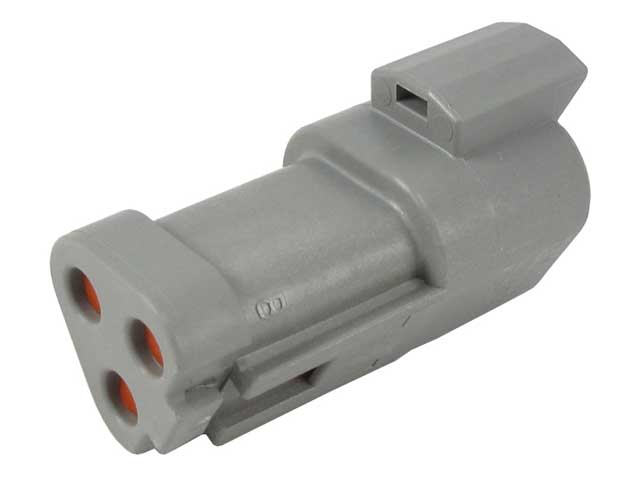

DT04-3P-P006
DeutschCatalogue item

DT04-3P-P006

Generally high availability — ask for current lead time
No. of cavities
3
Color
Gray
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities3
ColorGray
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
keyedYes, J1939
MaterialPlastic
ModificationGold Pins, J1939, Terminating Resistor
SeriesDT Series
ShapeTriangular

Mating connectors

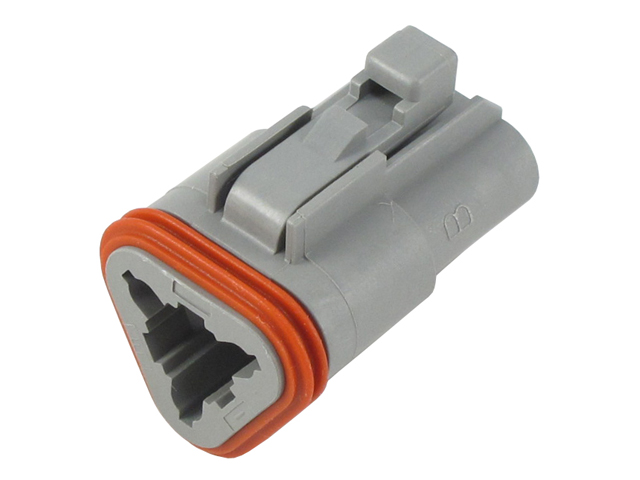

DT06-3S
DT06-3S

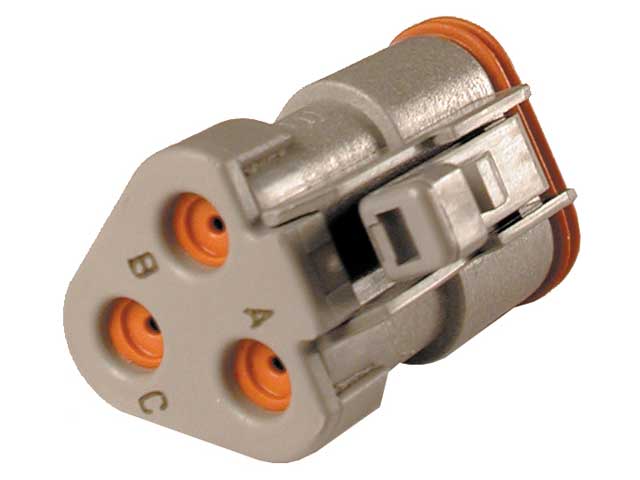

DT06-3S-E003
DT06-3S-E003

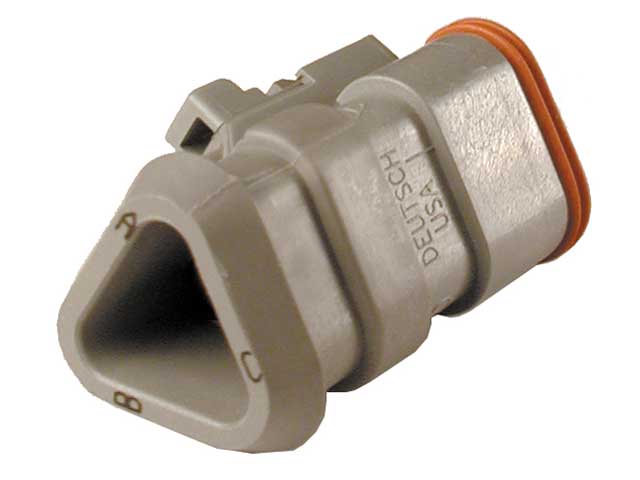

DT06-3S-E008
DT06-3S-E008

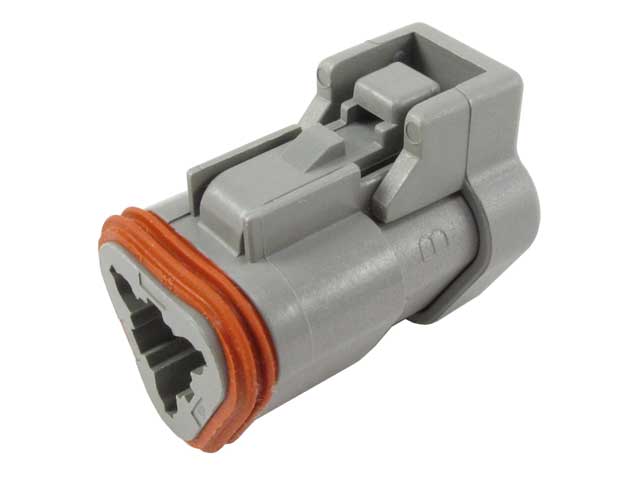

DT06-3S-EP05
DT06-3S-EP05

Required components

Included

Accessories

1011-026-0205
1011-026-0205
1027-003-1200
1027-003-1200
DT3P-DC
DT3P-DC

Drawings

Customer View Model (PDF)3D_CVM_CVM_DT04-3P-P006_99.pdfProduct Drawing (PDF)ENG_CD_DT04-3P-P006_A.pdfProduct Drawing (TIF)ENG_CD_DT04-3P-P006_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT04-3P-P006_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT04-3P-P006_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT04-3P-P006_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
