DT04-3P-EE01

Outlet stock, €1.09 per unit

10 in stock at our Keila warehouse, price for 1 to 10 pieces, while quantities last. Browse the Components Outlet

1
DT3-wayPlugDeutsch

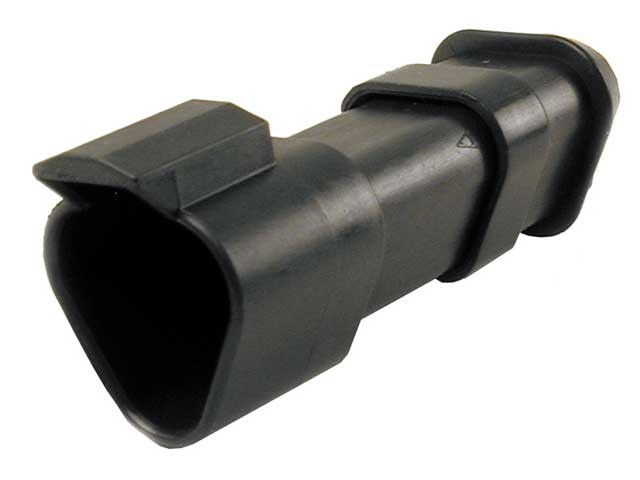

Deutsch DT04-3P-EE01, DT Series, 3-Way Plug, connector, for wire processing

DT Series · 3-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
3
Contact size
16
Current rating
13
Wire size (AWG)
14, 16, 18, 20
Color
Black
Required wedgelock
W3P
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities3
Part NumberDT04-3P-EE01
Flange/In-line/PCB MountIn-line
ModificationShrink Boot Adapter
Current Rating13
Contact Size16
ShapeTriangular
MaterialPlastic
Connector StyleReceptacle
Holds Pin/SocketPin
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW3P
ColorBlack

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-3S-E004
DT06-3S-E004
DT06-3S-EP06
DT06-3S-EP06
DT06-3S-EP11
DT06-3S-EP11
DT06-3S-P012
DT06-3S-P012

Required components

Must be ordered together with the housing.

W3P
W3P

Accessories

1011-026-0205
1011-026-0205
1027-003-1200
1027-003-1200
DT-RT1
DT-RT1
DT3P-DC
DT3P-DC
SSK03 Rubber boot
SSK03 Rubber boot

Drawings & CAD files

stepCAD Files 3D Model (STEP Version 99 ZIP)
187.75 KB
pdfCustomer View Model (PDF)
306.23 KB
pdfProduct Drawing (PDF)
50.69 KB
tifProduct Drawing (TIF)
49.78 KB
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
39.70 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
381.23 KB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
