DT04-3P-CE02

Outlet stock, €0.61 per unit

30 in stock at our Keila warehouse, price for 1 to 10 pieces, while quantities last. Browse the Components Outlet

1
DT3-wayPlugDeutsch

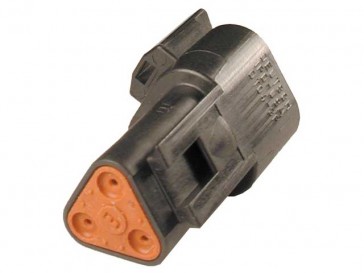

Deutsch DT04-3P-CE02, DT Series, 3-Way Plug, connector, for wire processing

DT Series · 3-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
3
Contact size
16
Series
DT Series
Type
Plug
Current rating
13
Wire size
14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities3
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.053-.120 [1.35-3.05]
keyedNo
MaterialPlastic
ModificationReduced Dia. Seals
Seal SizeE seal
SeriesDT Series
ShapeTriangular
Wire Size14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-3S-CE02
DT06-3S-CE02

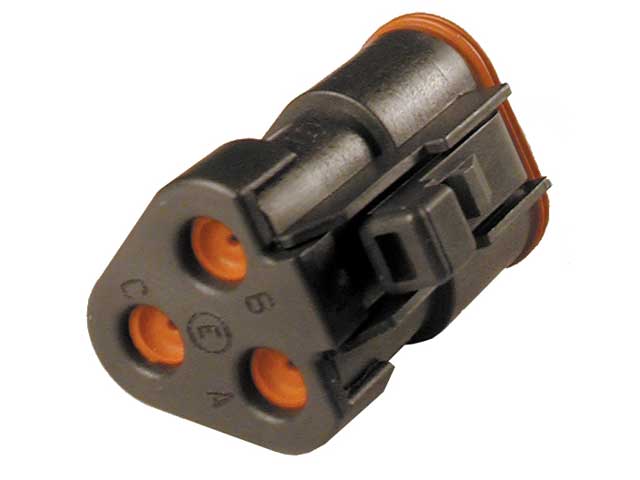

DT06-3S-CE05
DT06-3S-CE05

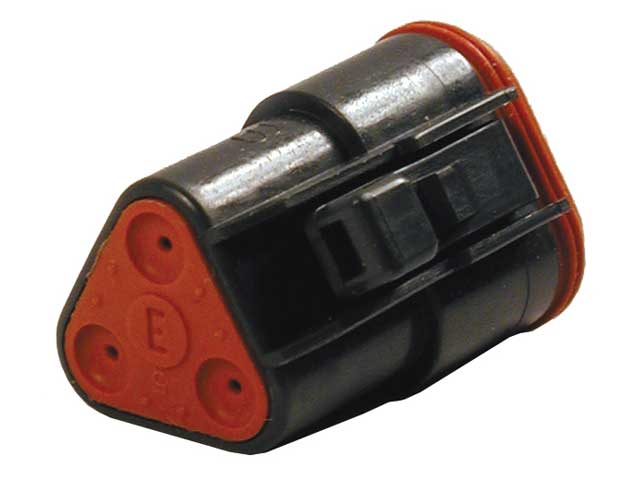

DT06-3S-CE06
DT06-3S-CE06

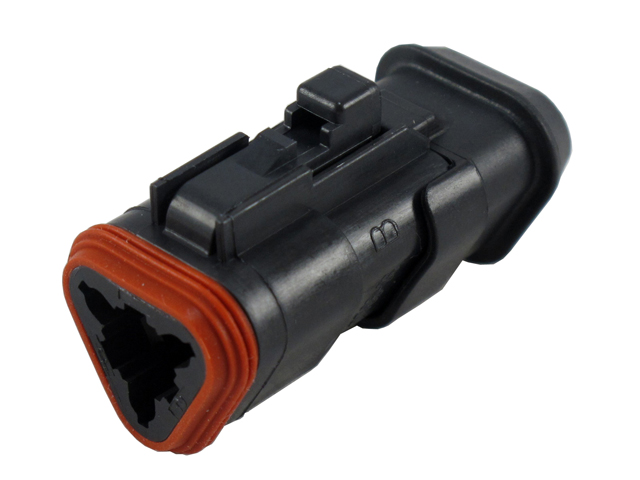

DT06-3S-CE13
DT06-3S-CE13

Required components

Must be ordered together with the housing.

W3P
W3P
W3P
W3P

Accessories

1011-026-0205
1011-026-0205
1011-233-0305
1011-233-0305
1027-003-1200
1027-003-1200
DT3P-BT
DT3P-BT

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
