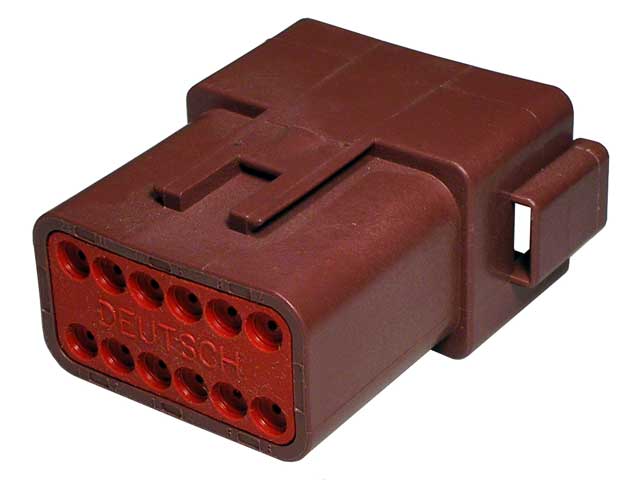

DT04-12PD-C015
DeutschCatalogue item

DT04-12PD-C015

Generally high availability — ask for current lead time
No. of cavities
12
Color
Brown
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities12
ColorBrown
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.053-.120 [1.35-3.05]
keyedYes, D key
MaterialPlastic
ModificationReduced Dia. Seals
Seal SizeE seal
SeriesDT Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

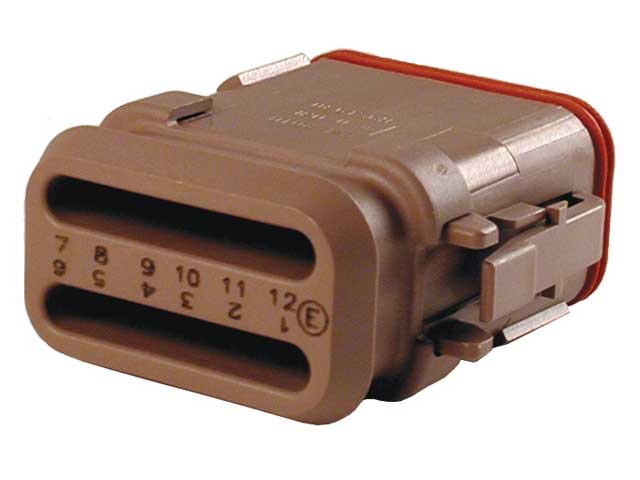

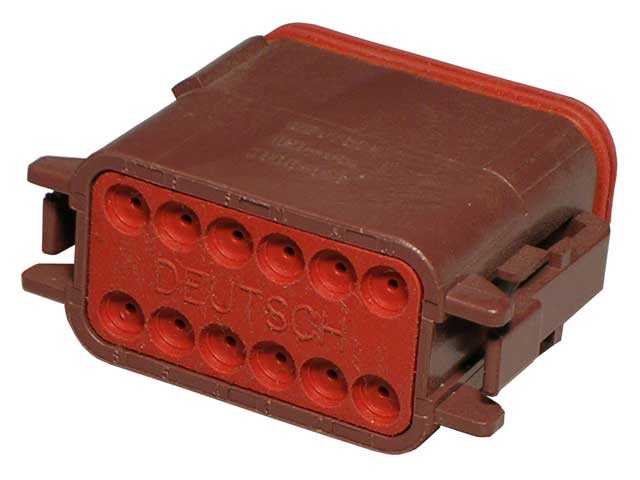

DT06-12SD-C015
DT06-12SD-C015
DT06-12SD-CE04
DT06-12SD-CE04

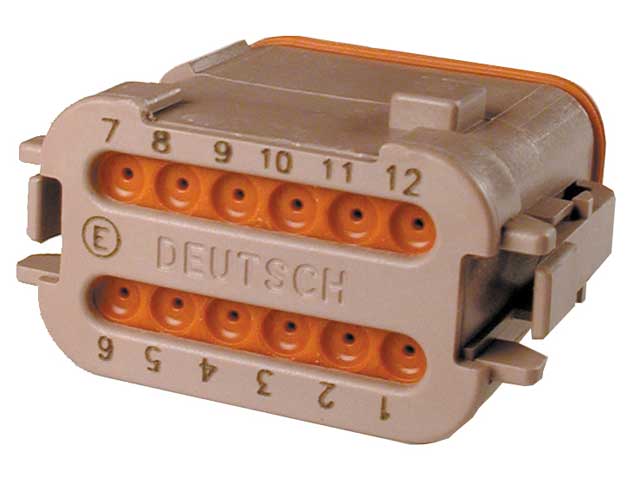

DT06-12SD-CE05
DT06-12SD-CE05

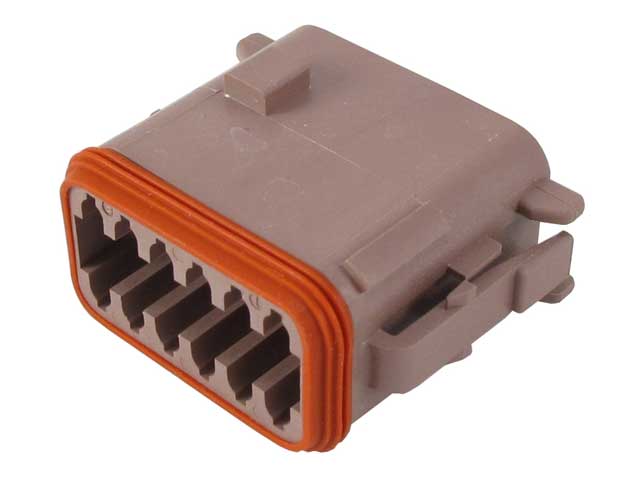

DT06-12SD-CE06
DT06-12SD-CE06

Required components

W12P
W12P

Accessories

1011-026-0205
1011-026-0205
1011-249-1205
1011-249-1205
1027-003-1200
1027-003-1200
DT12P-BT
DT12P-BT

Drawings

Customer View Model (PDF)3D_CVM_CVM_DT04-12PD-C015_99_c-dt04-12pd-c015-99-3d.pdfProduct Drawing (PDF)ENG_CD_DT04-12PX-C015_-.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT04-12PD-C015_99_c-dt04-12pd-c015-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT04-12PD-C015_99_c-dt04-12pd-c015-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT04-12PD-C015_99_c-dt04-12pd-c015-99.3d_stp.zip
