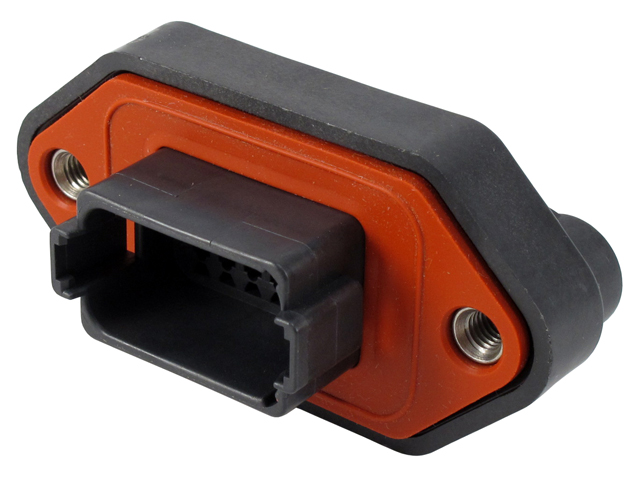

DT04-12PB-CL11
DeutschCatalogue item

DT04-12PB-CL11

Generally high availability — ask for current lead time
No. of cavities
12
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
Flange
Request a quoteCall usEmail

Additional information

No. of cavities12
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.053-.120 [1.35-3.05]
keyedYes, B key
MaterialPlastic
ModificationReduced Dia. Seals, Sealed Flange, End Cap
Seal SizeE seal
SeriesDT Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-12SB-C015
DT06-12SB-C015
DT06-12SB-CE01
DT06-12SB-CE01
DT06-12SB-CE05
DT06-12SB-CE05
DT06-12SB-CE13
DT06-12SB-CE13

Required components

W12P
W12P

Accessories

DT-RT1
DT-RT1
DT12P-DC
DT12P-DC

Drawings

Customer View Model (PDF)3D_CVM_CVM_DT04-12PB-CL11_99_c-dt04-12pb-cl11-99-3d.pdfProduct Drawing (PDF)ENG_CD_DT04-12PX-CL11_-.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT04-12PB-CL11_99_c-dt04-12pb-cl11-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT04-12PB-CL11_99_c-dt04-12pb-cl11-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT04-12PB-CL11_99_c-dt04-12pb-cl11-99.3d_stp.zip
