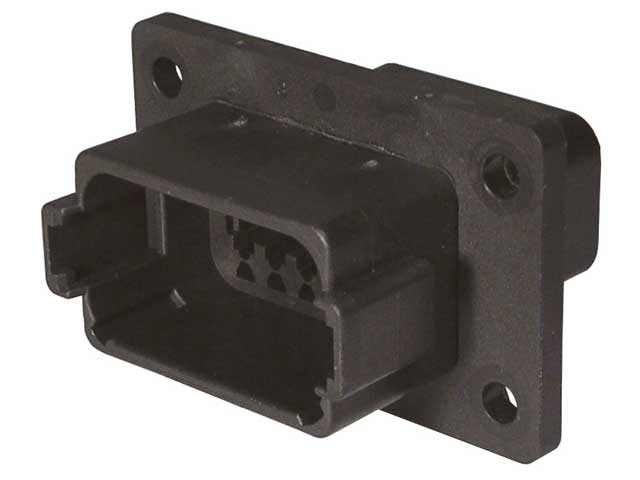

DT04-12PA-LE14
DeutschCatalogue item

DT04-12PA-LE14

Generally high availability — ask for current lead time
No. of cavities
12
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
Flange
Request a quoteCall usEmail

Additional information

No. of cavities12
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.088-.145 [2.24-3.68]
keyedYes, A key
MaterialPlastic
ModificationWelded Flange
SeriesDT Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-12SA-E005
DT06-12SA-E005
DT06-12SA-EP07
DT06-12SA-EP07
DT06-12SA-EP08
DT06-12SA-EP08

Required components

W12P
W12P

Accessories

DT-RT1
DT-RT1

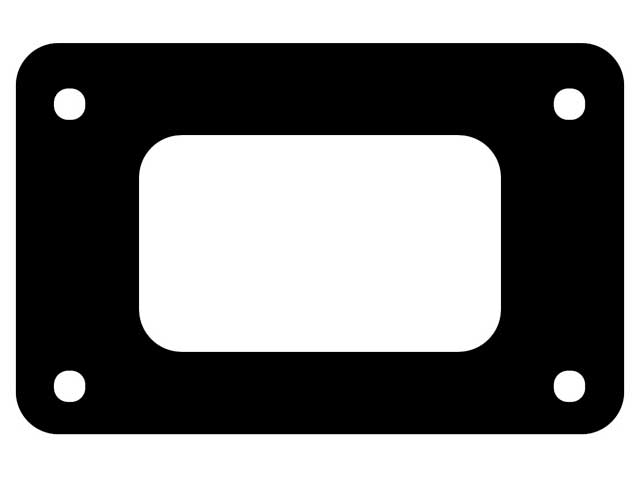

DT12-L012-GKT
DT12-L012-GKT
DT12P-DC
DT12P-DC

Drawings

Customer View Model (PDF)3D_CVM_CVM_DT04-12PA-LE14_99_c-dt04-12pa-le14-99-3d.pdfProduct Drawing (PDF)ENG_CD_DT04-12PA-LE14_A.pdfProduct Drawing (TIF)ENG_CD_DT04-12PA-LE14_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT04-12PA-LE14_99_c-dt04-12pa-le14-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT04-12PA-LE14_99_c-dt04-12pa-le14-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT04-12PA-LE14_99_c-dt04-12pa-le14-99.3d_stp.zip
