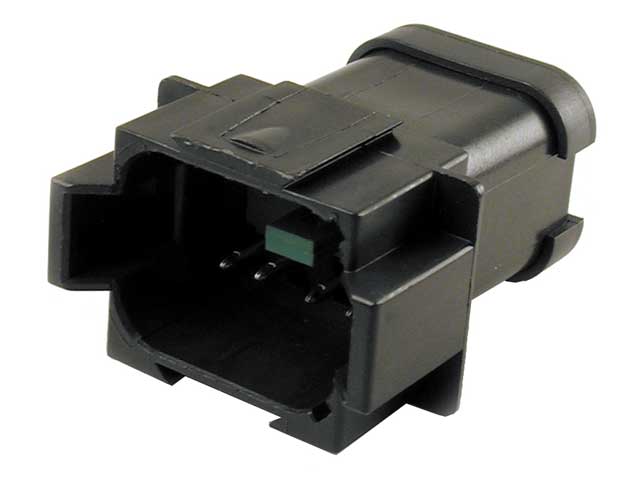

DT04-08PB-P026
DeutschCatalogue item

DT04-08PB-P026

Generally high availability — ask for current lead time
No. of cavities
8
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities8
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
keyedYes, B key
MaterialPlastic
Modification(2) 4 Pin Busses, Nickel Contacts
SeriesDT Series
ShapeRectangular

Mating connectors

DT06-08SB
DT06-08SB
DT06-08SB-EP06
DT06-08SB-EP06
DT06-08SB-P012
DT06-08SB-P012

Required components

Included

Accessories

1011-027-0805
1011-027-0805
1027-001-0800
1027-001-0800
1027-002-0800
1027-002-0800
1027-006-0800
1027-006-0800

Drawings

Customer View Model (PDF)3D_CVM_CVM_DT04-08PB-P026_99.pdfProduct Drawing (PDF)ENG_CD_DT04-08PB-P026_A.pdfProduct Drawing (TIF)ENG_CD_DT04-08PB-P026_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT04-08PB-P026_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT04-08PB-P026_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT04-08PB-P026_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
