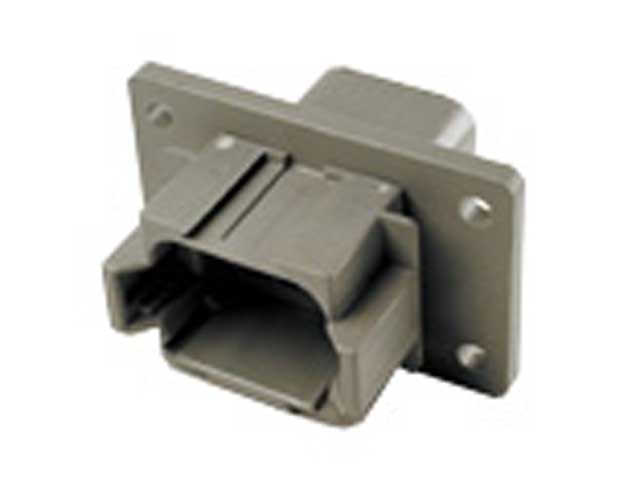

DT04-08PA-L012
DeutschCatalogue item

DT04-08PA-L012

Generally high availability — ask for current lead time
No. of cavities
8
Color
Gray
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
Flange
Request a quoteCall usEmail

Additional information

No. of cavities8
ColorGray
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.088-.145 [2.24-3.68]
keyedYes, A key
MaterialPlastic
ModificationWelded Flange
SeriesDT Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

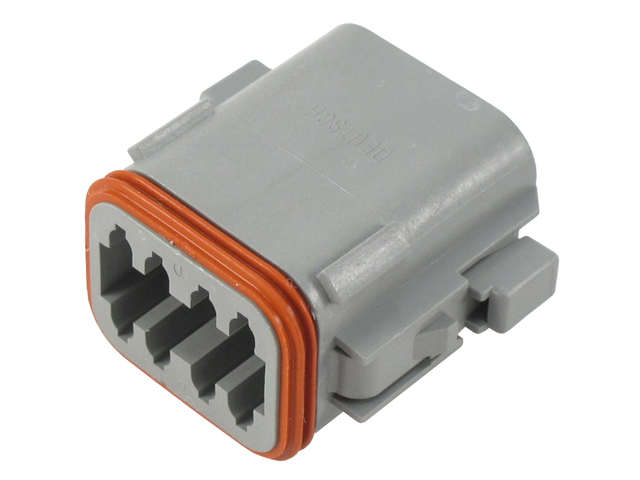

DT06-08SA
DT06-08SA

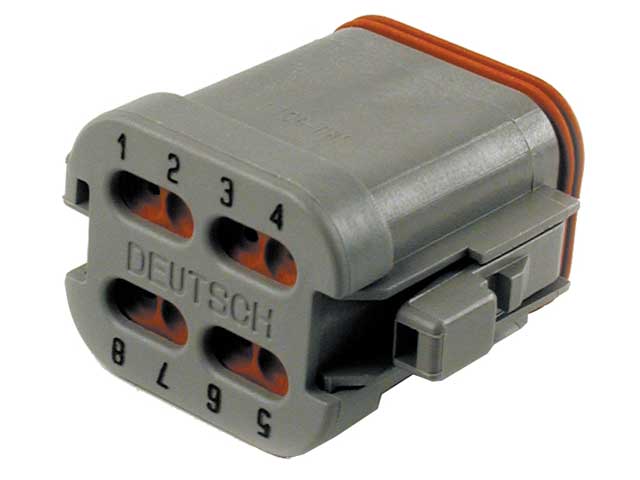

DT06-08SA-E003
DT06-08SA-E003

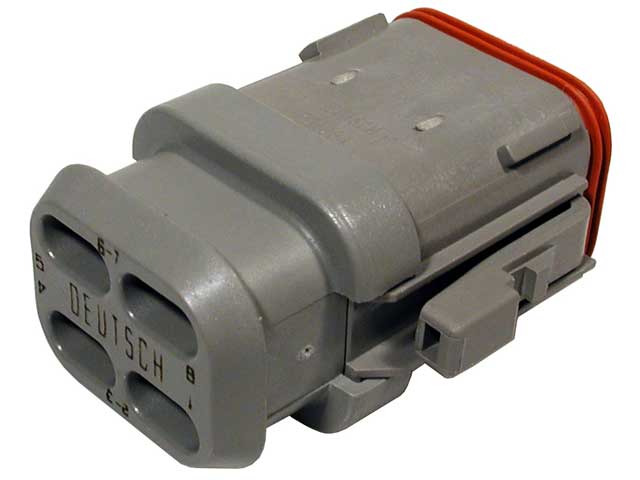

DT06-08SA-E008
DT06-08SA-E008

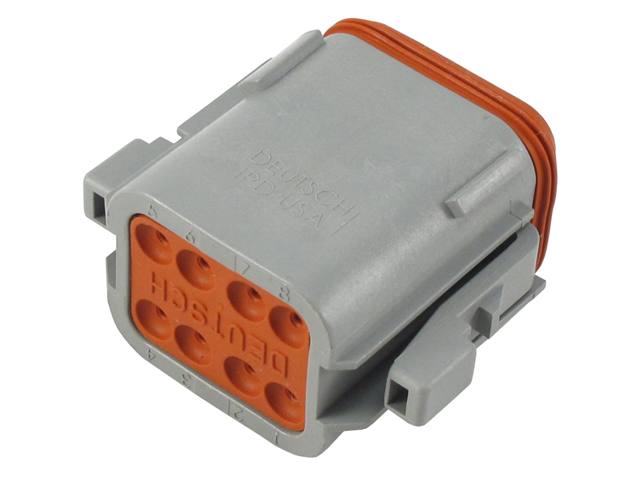

DT06-08SA-P012
DT06-08SA-P012

Required components

W8P
W8P

Accessories

DT-RT1
DT-RT1

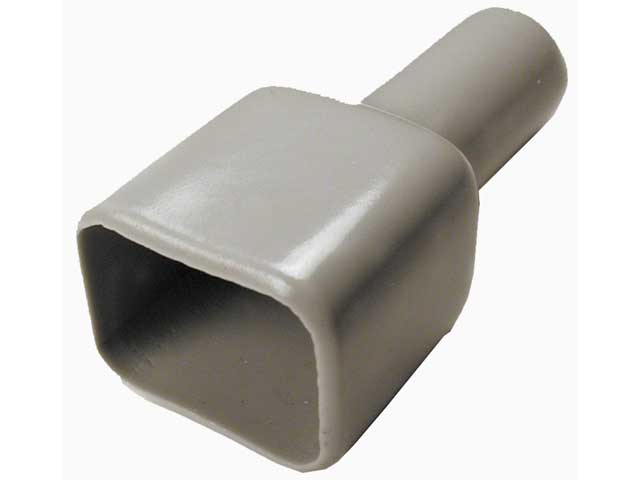

DT8P-BT
DT8P-BT

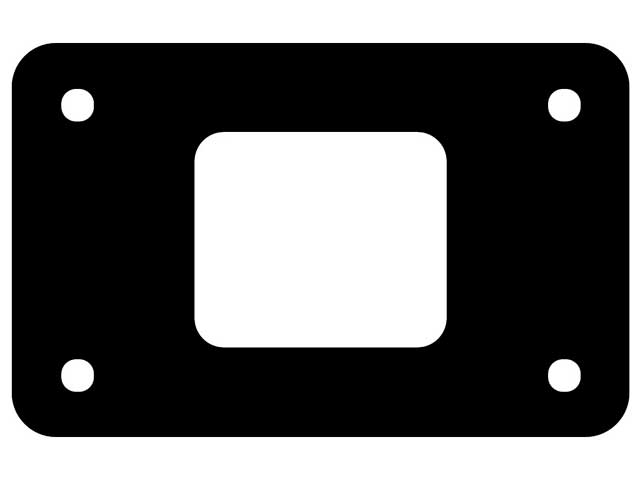

DT8P-L012-GKT
DT8P-L012-GKT

Drawings

Customer View Model (PDF)3D_CVM_CVM_DT04-08PA-L012_99.pdfProduct Drawing (PDF)ENG_CD_DT04-08PX-L012_A.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DT04-08PA-L012_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DT04-08PA-L012_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DT04-08PA-L012_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
