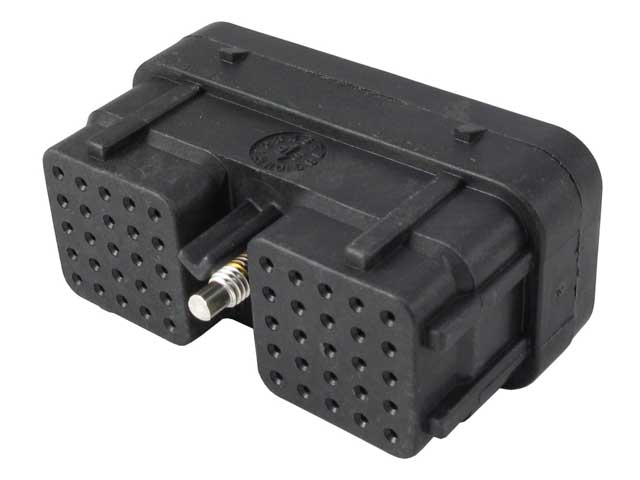

DRC26-50S10
DeutschCatalogue item

DRC26-50S10

Generally high availability — ask for current lead time
No. of cavities
50
Color
Black
Connector Style
Plug
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities50
ColorBlack
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.040-.095 [1.02-2.41]
keyedYes, 10 key
MaterialPlastic
SeriesDRC Series
ShapeRectangular
Wire Size16, 18, 20, 22

Contacts

0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031
1062-20-0122
1062-20-0122
1062-20-0144
1062-20-0144

Accessories

0411-240-2005
0411-240-2005
0528-001-5005
0528-001-5005
DRC26-50BT
DRC26-50BT

Drawings

Customer View Model (PDF)3D_CVM_CVM_DRC26-50S10_99_c-drc26-50s10-99-3d.pdfProduct Drawing (PDF)ENG_CD_DRC26-50SXX_A.pdfProduct Drawing (TIF)ENG_CD_DRC26-50SXX_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DRC26-50S10_99_c-drc26-50s10-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DRC26-50S10_99_c-drc26-50s10-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DRC26-50S10_99_c-drc26-50s10-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
