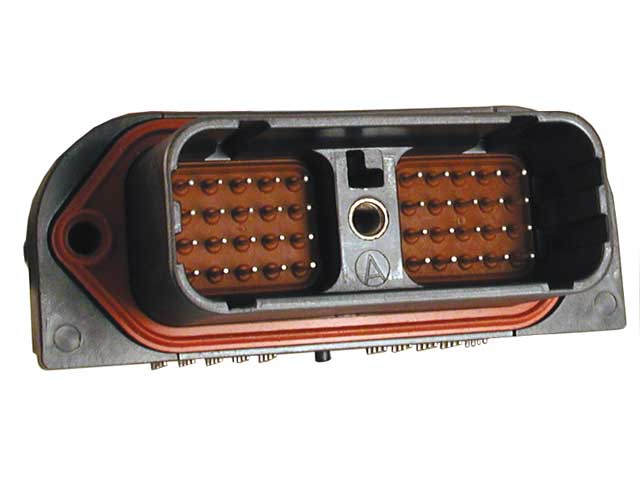

DRC23-40PA-G004
Generally high availability — ask for current lead time
No. of cavities
40
Color
Black
Connector Style
Receptacle
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
PCB
Additional information
| No. of cavities | 40 |
| Color | Black |
| Connector Style | Receptacle |
| Contact Size | 20 |
| Current Rating | 7.5 |
| Flange/In-line/PCB Mount | PCB |
| Holds Pin/Socket | Pin |
| keyed | Yes, A key |
| Material | Plastic |
| Modification | Mating Side Nickel, PCB Side Tin |
| Series | DRC Series |
| Shape | Rectangular |
| Special Features | 90 degrees molded pins |
| Wire Size | 20 |
