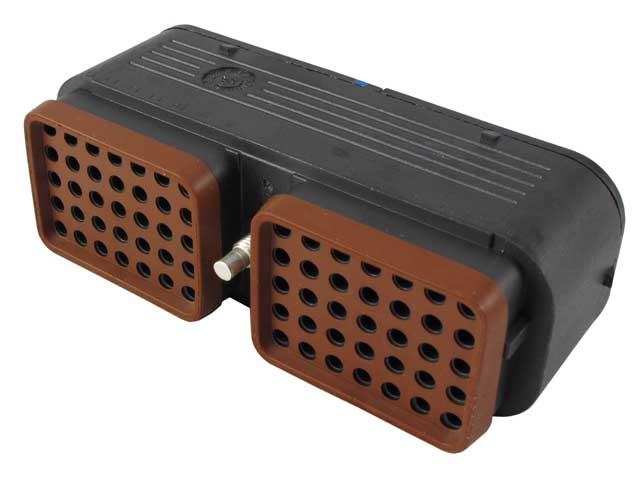

DRC16-70SBE-P013
DeutschCatalogue item

DRC16-70SBE-P013

Generally high availability — ask for current lead time
No. of cavities
70
Color
Black
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities70
ColorBlack
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
keyedYes, B key
MaterialPlastic
ModificationBonded Front Seal
Seal SizeE seal
SeriesDRC Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

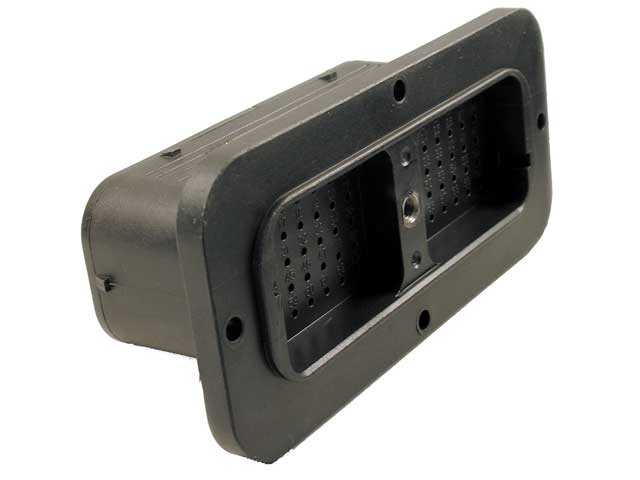

DRC12-70PBE
DRC12-70PBE

Accessories

DRC70-BT
DRC70-BT
DRC70-GKT
DRC70-GKT

Drawings

Customer View Model (PDF)3D_CVM_CVM_DRC16-70SBE-P013_99_c-drc16-70sbe-p013-99-3d.pdfProduct Drawing (PDF)ENG_CD_DRC16-70SXE-P013_-.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DRC16-70SBE-P013_99_c-drc16-70sbe-p013-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DRC16-70SBE-P013_99_c-drc16-70sbe-p013-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DRC16-70SBE-P013_99_c-drc16-70sbe-p013-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
