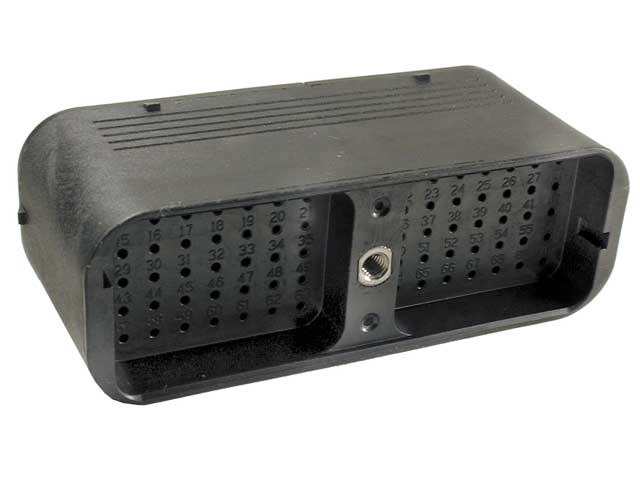

DRC14-70PA
DeutschCatalogue item

DRC14-70PA

Generally high availability — ask for current lead time
No. of cavities
70
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities70
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.100-.134 [2.54-3.40]
keyedYes, A key
MaterialPlastic
SeriesDRC Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

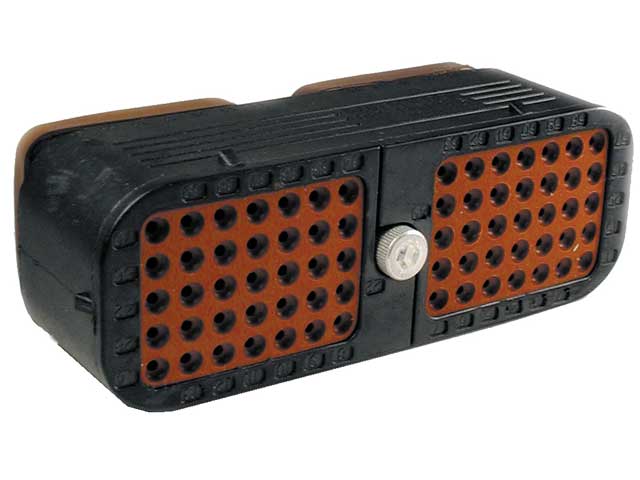

DRC16-70SA
DRC16-70SA

Accessories

DRC70-BT
DRC70-BT
DRC70-GKT
DRC70-GKT

Drawings

Customer View Model (PDF)3D_CVM_CVM_DRC14-70PA_C_c-drc14-70pa-c-3d.pdfProduct Drawing (PDF)ENG_CD_DRC14-70PAX_A.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DRC14-70PA_C_c-drc14-70pa-c.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DRC14-70PA_C_c-drc14-70pa-c.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DRC14-70PA_C_c-drc14-70pa-c.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
