DeutschCatalogue item

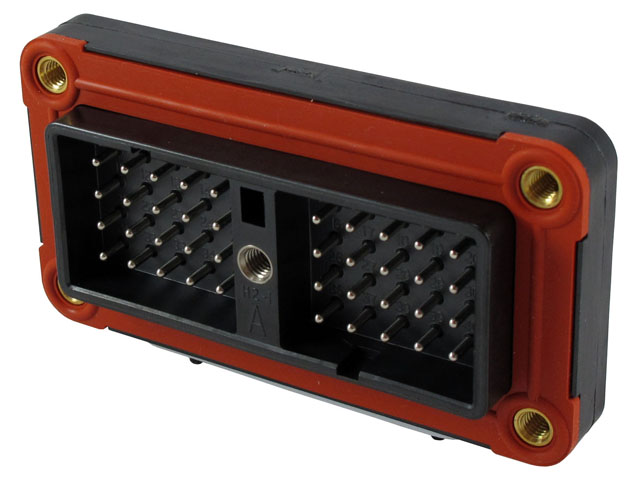

DRC13-40PA
Generally high availability — ask for current lead time
No. of cavities
40
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
PCB Mount
Additional information
| No. of cavities | 40 |
| Color | Black |
| Connector Style | Receptacle |
| Contact Size | 16 |
| Current Rating | 13 |
| Flange/In-line/PCB Mount | PCB Mount |
| Holds Pin/Socket | Pin |
| keyed | Yes, A key |
| Material | Plastic |
| Series | DRC Series |
| Shape | Rectangular |
| Special Features | 90 degrees molded pins |
| Wire Size | 16 |

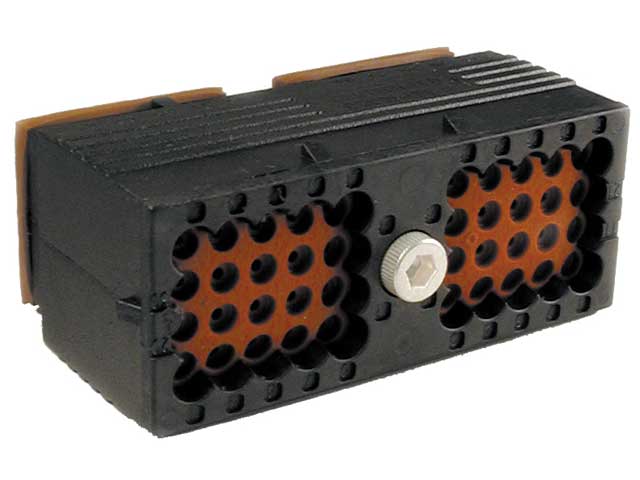

Mating connectors
Drawings
Customer View Model (PDF)3D_CVM_CVM_DRC13-40PA_99_c-drc13-40pa-99-3d.pdfProduct Drawing (PDF)ENG_CD_DRC13-40PX_B.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DRC13-40PA_99_c-drc13-40pa-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DRC13-40PA_99_c-drc13-40pa-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DRC13-40PA_99_c-drc13-40pa-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
