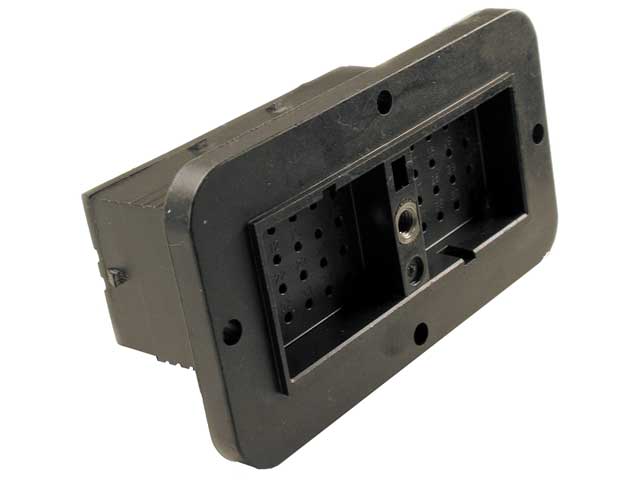

DRC12-40PAE

Generally high availability — ask for current lead time
No. of cavities
40
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
Flange
Request a quoteCall usEmail

Additional information

No. of cavities40
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.053-.120 [1.35-3.05]
keyedYes, A key
MaterialPlastic
Seal SizeE seal
SeriesDRC Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

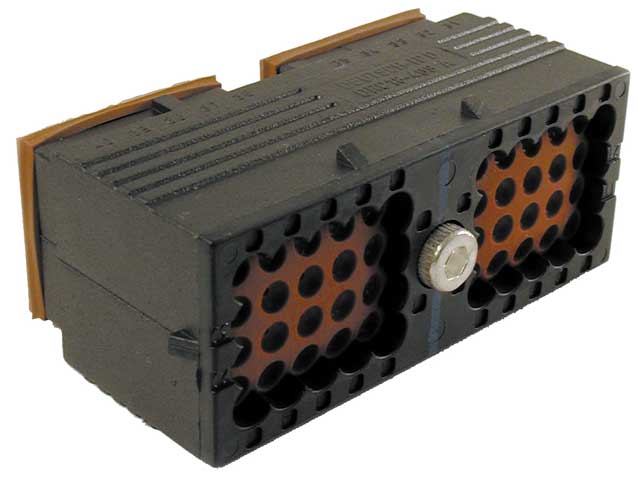

DRC18-40SAE
DRC18-40SAE

Accessories

0411-336-1605
0411-336-1605
DRC40-BT
DRC40-BT
DRC40-GKT
DRC40-GKT

Drawings

Customer View Model (PDF)3D_CVM_CVM_DRC12-40PAE_99.pdfProduct Drawing (PDF)ENG_CD_DRC12-40PAX_D.pdfProduct Drawing (TIF)ENG_CD_DRC12-40PAX_D.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DRC12-40PAE_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DRC12-40PAE_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DRC12-40PAE_99.3d_stp.zip
