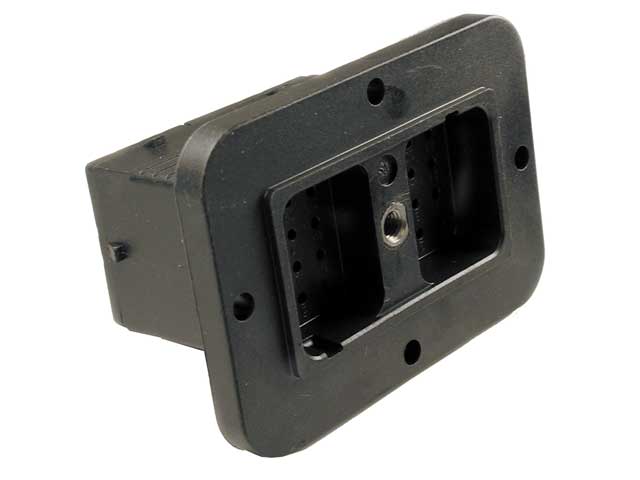

DRC12-24PB
DeutschCatalogue item

DRC12-24PB

Generally high availability — ask for current lead time
No. of cavities
24
Color
Black
Connector Style
Receptacle
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
Flange
Request a quoteCall usEmail

Additional information

No. of cavities24
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.100-.134 [2.54-3.40]
keyedYes, B key
MaterialPlastic
SeriesDRC Series
ShapeRectangular
Wire Size14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

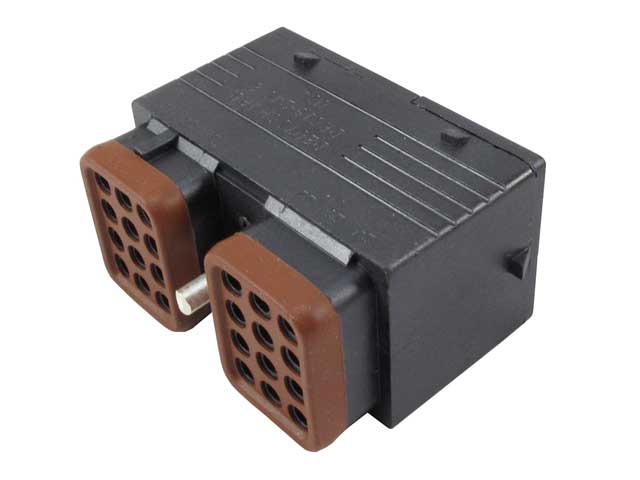

DRC16-24SB
DRC16-24SB

Accessories

0411-310-1605
0411-310-1605
DRC24-BT
DRC24-BT
DRC24-GKT
DRC24-GKT

Drawings

Customer View Model (PDF)3D_CVM_CVM_DRC12-24PB_99_c-drc12-24pb-99-3d.pdfProduct Drawing (PDF)ENG_CD_DRC12-24PBX_D.pdfProduct Drawing (TIF)ENG_CD_DRC12-24PBX_D.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DRC12-24PB_99_c-drc12-24pb-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DRC12-24PB_99_c-drc12-24pb-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DRC12-24PB_99_c-drc12-24pb-99.3d_stp.zip
