DeutschCatalogue item

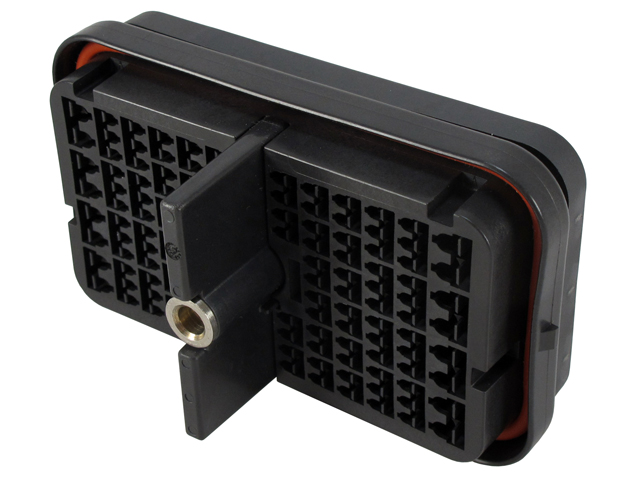

DRB16-128SAE-L018
Generally high availability — ask for current lead time
No. of cavities
128
Color
Black
Connector Style
Plug
Flange/In-line/PCB Mount
Flange
Holds Pin/Socket
Socket
Insulation
(#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05]
Additional information
| No. of cavities | 128 |
| Color | Black |
| Connector Style | Plug |
| Flange/In-line/PCB Mount | Flange |
| Holds Pin/Socket | Socket |
| Insulation | (#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05] |
| keyed | Yes, A key |
| Material | Plastic |
| Modification | Wire Router |
| Seal Size | E seal |
| Series | DRB Series |
| Shape | Rectangular |
| Wire Size | 10, 12, 14, 16, 18, 20 |
Mating connectors
Required components
WB-64SA
WB-64SA x 2
Drawings
Customer View Model (PDF)3D_CVM_CVM_DRB16-128SAE-L018_99.pdfProduct Drawing (PDF)ENG_CD_DRB16-128SXE-L018_B.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DRB16-128SAE-L018_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DRB16-128SAE-L018_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DRB16-128SAE-L018_99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
