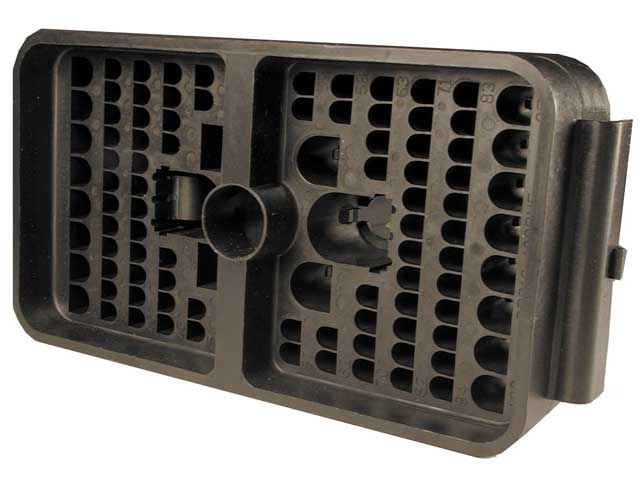

DRB12-102PANE

Generally high availability — ask for current lead time
No. of cavities
102
Color
Black
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange
Holds Pin/Socket
Pin
keyed
Yes, A key
Request a quoteCall usEmail

Additional information

No. of cavities102
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
keyedYes, A key
MaterialPlastic
SeriesDRB Series
ShapeRectangular
Special FeaturesNon-environmentally sealed
Wire Size6, 8, 10, 12, 14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-204-0490
0460-204-0490
0460-204-08141
0460-204-08141
0460-204-12141
0460-204-12141

Mating connectors

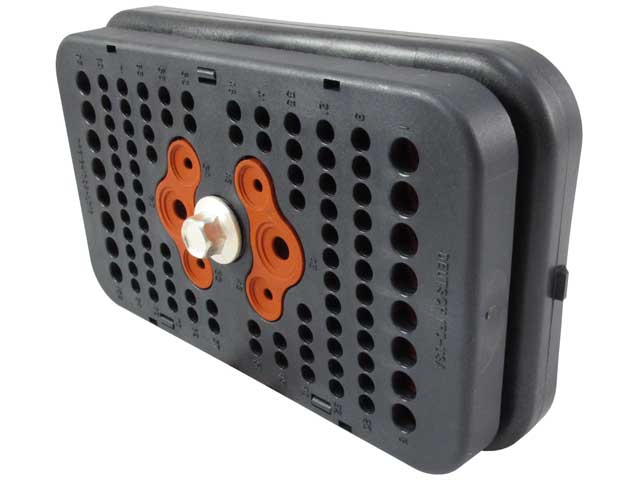

DRB16-102SAE-L018
DRB16-102SAE-L018

Required components

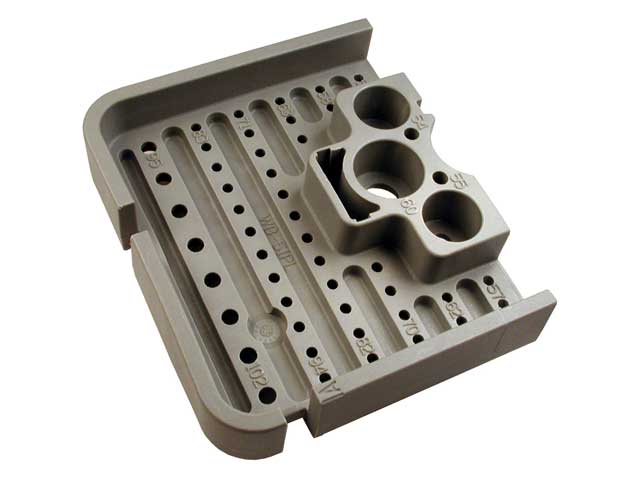

WB-51PAL
WB-51PAL

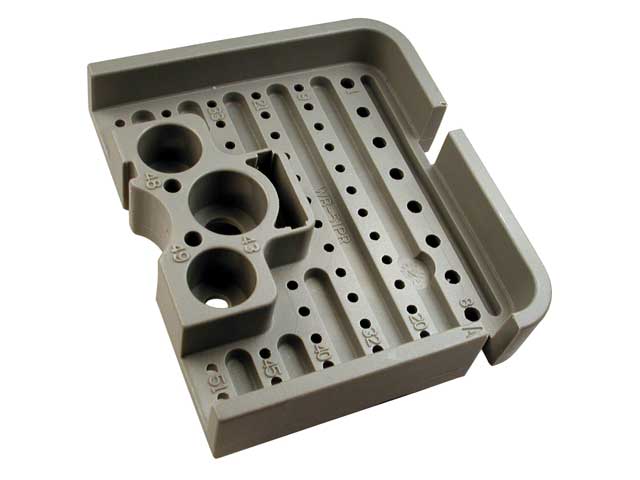

WB-51PAR
WB-51PAR
WB-51PAL and WB-51PAR

Accessories

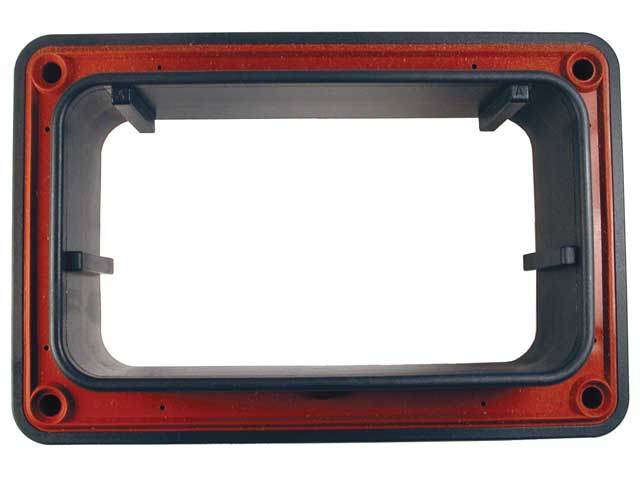

DRBF-1A
DRBF-1A
DT-RT1
DT-RT1

Drawings

Customer View Model (PDF)3D_CVM_CVM_DRB12-102PANE_99.pdfProduct Drawing (PDF)ENG_CD_DRB12-102PXNE_A.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_DRB12-102PANE_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_DRB12-102PANE_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_DRB12-102PANE_99.3d_stp.zip
