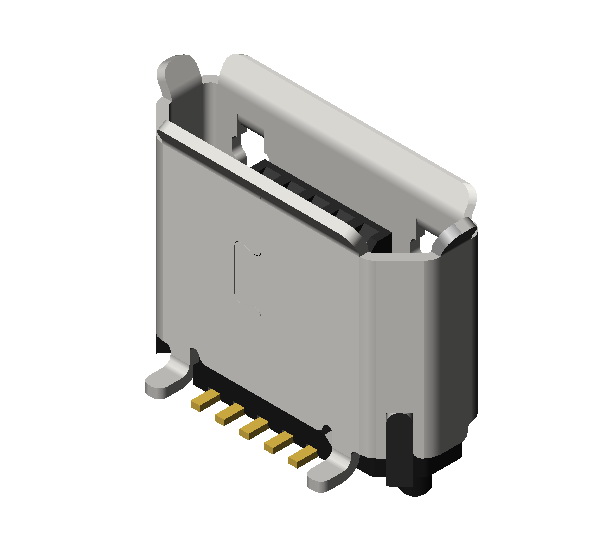

CU09 Series Micro USB 5 Circuits Type-B Straight SMT Board Mount Connectors
• Rated Current and Voltage : Signal(Pin 2,3,4): 0.5A,250V AC (r.m.s) Power(Pin 1,5): 1.8A,250V AC (r.m.s) • Dielectric Withstanding Voltage : 100V AC at sea level • Contact Resistance : Initial＜30mΩ ; Final＜40mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -25℃~85℃ storage; -20℃~85℃ operating • RoHS Compliant • Lead Free IR Processes
Generally high availability — ask for current lead time
Circuits
5 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_369.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CU0932S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
CCT-TVL0138
Additional information
| Circuits | 5 CIRCUTS |
| Product Drawings | Download CU0932S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | CCT-TVL0138 |
| Plating Code | E= Gold Flash Plated over 50μ” Nickel Download CU0932S PDF |
| RoHS | 0 |
| Specification | Download SPCU024 |
| Test Report | Download CU09SEV15B0-R0 TEST Download TVL0138U091 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
