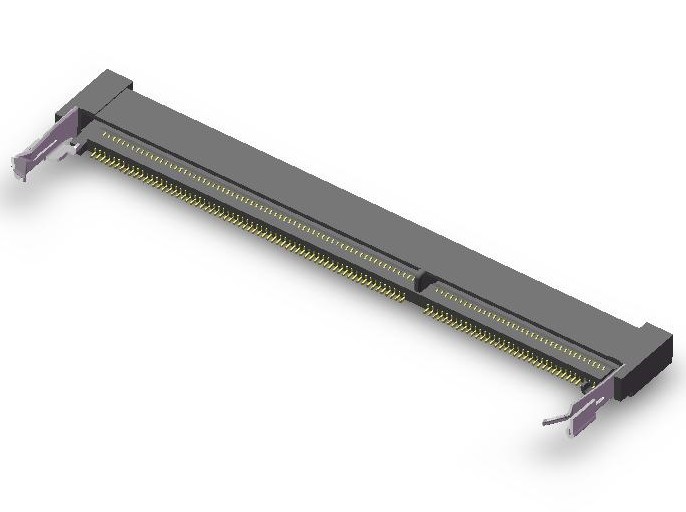

CS69 Series DDR S.O DIMM Socket for CS69(H=4.0mm 204P)
Catalogue item

CS69 Series DDR S.O DIMM Socket for CS69(H=4.0mm 204P)

• Rated Current and Voltage : 0.5A 25V AC(r.m.s) • Dielectric Withstanding Voltage : 125V AC for one minute • Contact Resistance : ＜60mΩ • Insulation Resistance : ＞100MΩ • Operating Temperature : -40℃ ~ +80℃

Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1471.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P288 CS69-1</a>
Circuits
204 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_362.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CS6902S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Request a quoteCall usEmail

Additional information

Catalog-pageDownload P288 CS69-1
Circuits204 CIRCUTS
Product DrawingsDownload CS6902S
GWIT0
Halogen Free0
Lead Free0
LocationCCT-TVL0135
Plating Code2= Gold Flash Plated over 50μ” Nickel Download GENERAL PLATING PDF
RoHS0
SpecificationDownload SPCS032
Test ReportDownload CS69 TEST
Tin-lead0
TUV0
UL0

Description

N/A
