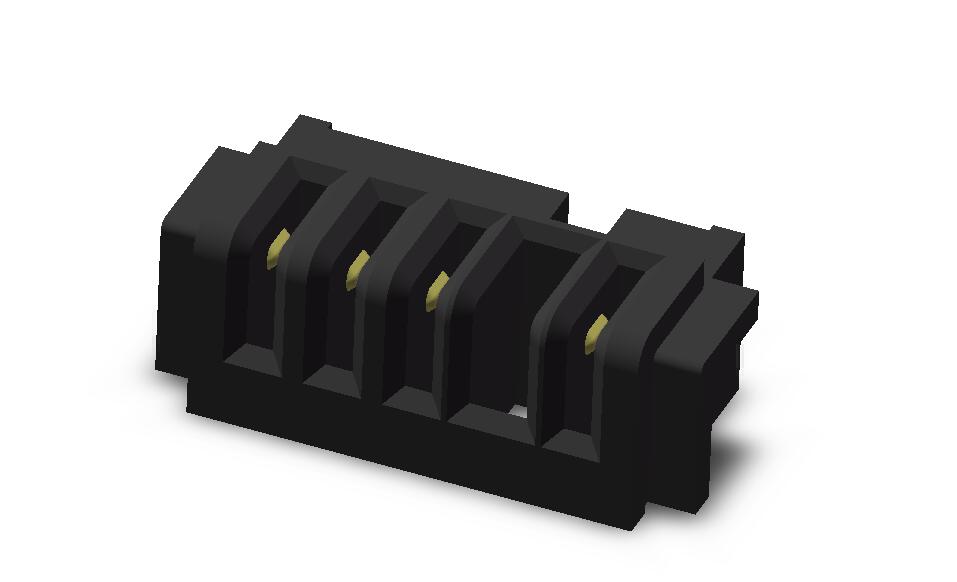

CP20 Series 2.50mm Right Angle Battery Female Connecrots
• Rated current and voltage : 7A max,125V AC (r.m.s) • Dielectric Withstanding Voltage : 1000V AC for one minute • Contact Resistance : ＜40mΩ • Insulation Resistance : ＞100MΩ • Operating Temperature : -40℃~ 105℃
Generally high availability — ask for current lead time
Circuits
03 to 06 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_1156.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CP2003S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
CED
Additional information
| Circuits | 03 to 06 CIRCUTS |
| Product Drawings | Download CP2003S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | CED |
| Plating Code | 9= 5u' Min. Gold Plated over 80u' Nickel Download G-PLATING PDF |
| RoHS | 0 |
| Specification | Download SPCP013 |
| Test Report | Download CP20 測驗報告 Download CI15P201 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
