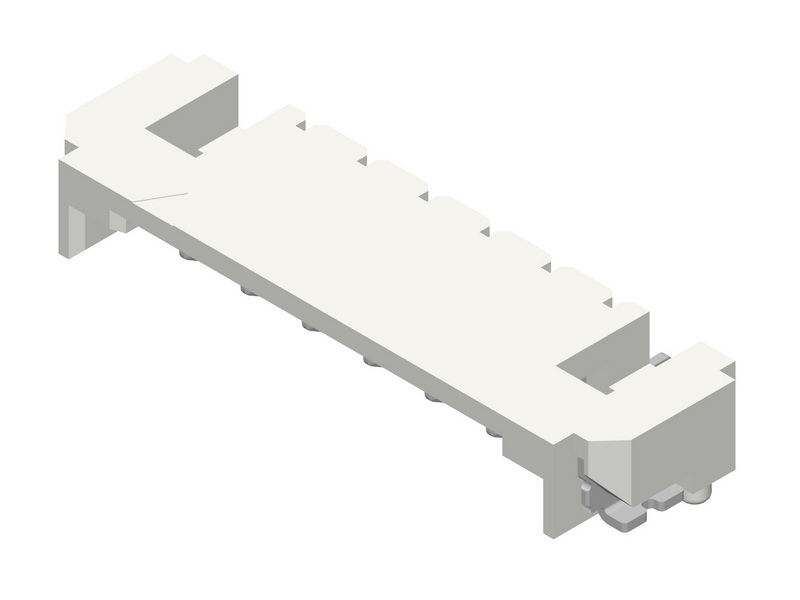

CP15 Serise 1.50mm Pitch Board to Board Plug Connectors
• Current rating : 1.0A 150V AC /DC • Dielectric Withstanding Voltage : 1300 V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -25℃~85℃
Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1353.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P161 CP15-3</a>
Circuits
3~6 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_338.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CP1519S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Additional information
| Catalog-page | Download P161 CP15-3 |
| Circuits | 3~6 CIRCUTS |
| Product Drawings | Download CP1519S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | HBC |
| Plating Code | 1= Matte Tin Plated over Nickel Download GENERAL PLATING-2 PDF |
| RoHS | 0 |
| Specification | Download SPCP075 |
| Test Report | Download CP15 可靠度測試報告 Download CI15P151 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
