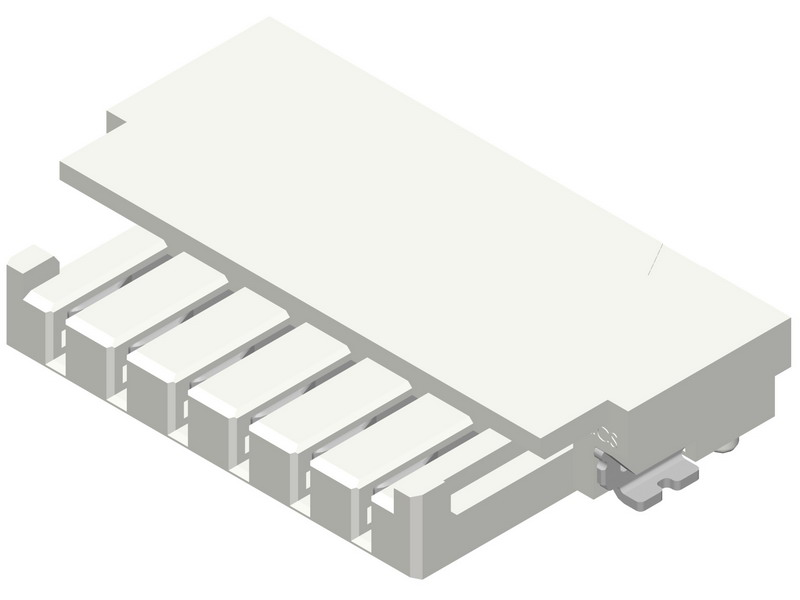

CP15 Series 1.50mm Right Angle SMT Board Mount Receptable Connectors
• Current Rating : 1.0 Amp • Voltage : 150V AC.(4P) 250V AC.(3P Omitted Pin No.2) • Dielectric Withstanding Voltage : 1300V AC for one minute(4P) ; 1500V AC for one minute(3P Omitted Pin No.2) • Contact Resistance : 20mΩ Max. • Insulation Resistance : 1000MΩ Min. • Operating Temperature : -25℃~85℃ • RoHS Compliant
Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1352.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P160 CP15-2</a>
Circuits
3,4 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_335.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CP1502S</a> <a href='/media/cvilux/cdi_pdf_337.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CP1504S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Additional information
| Catalog-page | Download P160 CP15-2 |
| Circuits | 3,4 CIRCUTS |
| Product Drawings | Download CP1502S Download CP1504S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | HBC |
| Plating Code | 1= Matte Tin Plated over Nickel Download GENERAL PLATING PDF |
| RoHS | 0 |
| Specification | Download SPCP075 |
| Test Report | Download CP15 可靠度測試報告 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
