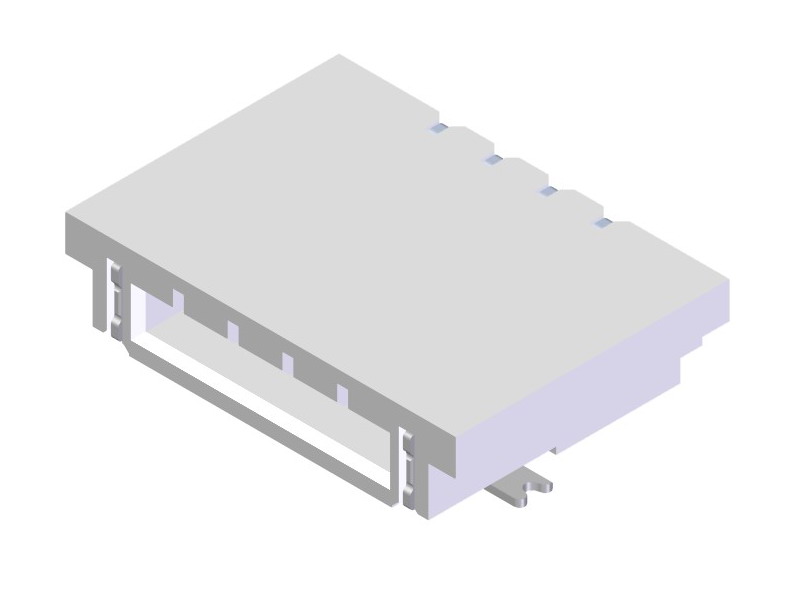

CP14 Light Bar SMT Connectors
• Current rating : 1.0A 250V AC /DC • Dielectric Withstanding Voltage : 1500 V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -25℃~85℃ • RoHS Compliant
Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1351.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P158 CP14</a>
Circuits
04 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_333.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CP1403S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Additional information
| Catalog-page | Download P158 CP14 |
| Circuits | 04 CIRCUTS |
| Product Drawings | Download CP1403S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | HBC |
| Plating Code | 1= Matte Tin Plated over Nicke Download GENERAL PLATING-2 PDF |
| RoHS | 0 |
| Specification | Download SPCP073 |
| Test Report | Download CP1404M1HRB-NH可靠度 Download CI15P142 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
