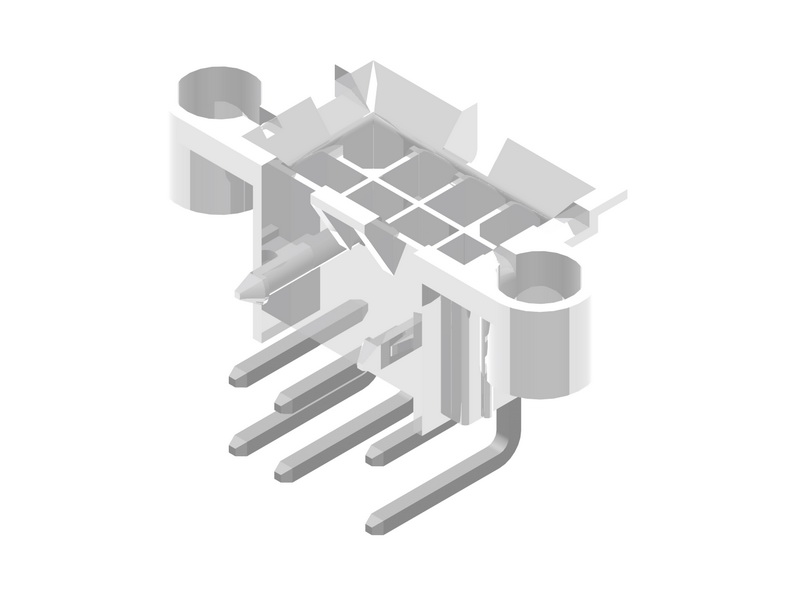

CP-014 SERIES BMI RIGHT ANGLE TYPE CONN.
• Current rating : 600V AC /DC • Dielectric Withstanding Voltage : 1500 V AC for one minute • Contact Resistance : ＜10mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -25℃~85℃
Generally high availability — ask for current lead time
Circuits
8 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_327.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CP01105S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
CED
Additional information
| Circuits | 8 CIRCUTS |
| Product Drawings | Download CP01105S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | CED |
| Plating Code | 1 = Tin Over Nickel Download SPPT001 PDF |
| RoHS | 0 |
| Specification | Download SPCP001 |
| Test Report | Download CP-011 & CP-014 可靠度測試報告 Download CI15P014 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
