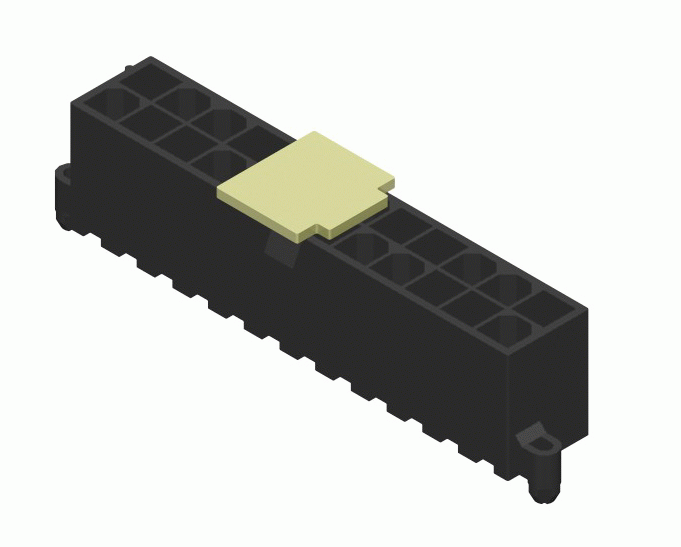

CP-013 Series 4.20mm(.165")Straight DIP Soleder Hedders
Catalogue item

CP-013 Series 4.20mm(.165")Straight DIP Soleder Hedders

• Rated current and voltage:6A(Awg#16~18)max, 600V AC (r.m.s) • Dielectric Withstanding Voltage : 1500V AC for one minute • Contact Resistance : ＜10mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -25℃~ 105℃ • RoHS Compliant

Generally high availability — ask for current lead time
Circuits
24 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_329.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CP01209S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
CED
Request a quoteCall usEmail

Additional information

Circuits24 CIRCUTS
Product DrawingsDownload CP01209S
GWIT0
Halogen Free0
Lead Free0
LocationCED
Plating Code2= Gold Flash Over Nickel Plated Download GENERAL PLATING-2 PDF
RoHS0
SpecificationDownload SPCP084
Test ReportDownload CP-013242Z0-R0-NH可靠度測試報告
Tin-lead0
TUV0
UL0

Description

N/A
