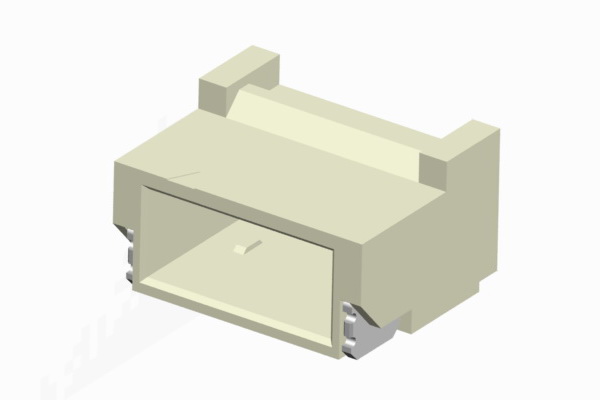

CIDL Serise 1.25mm(.049) Wire To Board SMT Top Entry Type Connector
• Rated Current and Voltage : 1.0A AC (r.m.s.)/DC(AWG#28)125V AC (r.m.s.)/DC • Dielectric Withstanding Voltage : 500 V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞100MΩ • Operating Temperature : -25℃~85℃ • RoHS Compliant • Lead Free Process • Halogen-Free
Generally high availability — ask for current lead time
Circuits
03 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_315.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CIDL02S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
HBC
Additional information
| Circuits | 03 CIRCUTS |
| Product Drawings | Download CIDL02S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | HBC |
| Plating Code | 1= Matte Tin Plated Over Nickel Download GENERAL PLATING-2 PDF |
| RoHS | 0 |
| Specification | Download SPCI141 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
